DC 60000Btu Floor Standing Split Air Conditioner 3ph Axial Fan
DC 36000 48000 55000 60000 Btu Floor Standing Split Type Air Conditioner
PRODUCT PARAMENTERS
|
Model
|
|
|
|
PMDS50F-48ACH
|
PMDS50F-48BCH
|
|
Function
|
Cooling &Heating
|
Cooling &Heating
|
|||
|
Capacity
|
Cooling
|
|
BTU/h
|
48000
|
48000
|
|
Heating
|
|
BTU/h
|
50000
|
49000
|
|
|
EER/COP
|
|
|
W/W
|
2.8/3.3
|
3.2/3.6
|
|
Power Supply
|
|
|
ph,V,Hz
|
3ph,380V-415V,50hz
|
3ph,380V-415V,50hz
|
|
Power Input
|
Cooling
|
|
W
|
5050
|
4670
|
|
Heating
|
|
W
|
4440
|
4050
|
|
|
Cooling Current
|
|
A
|
12.9
|
11.9
|
|
|
Heating Current
|
|
A
|
11.3
|
10.3
|
|
|
Refrigerant
|
R410A
|
R410A
|
|||
|
Refrigerant Charge
|
|
Kg
|
3.4
|
4
|
|
|
Indoor Unit
|
Airflow Volume
|
|
m³/h
|
2000
|
1850
|
|
Sound Pressure Level
|
dB(A)
|
44-52
|
44-52
|
||
|
Outline Dimension (W×H×D)
|
mm
|
582×1890×388
|
582×1890×388
|
||
|
Pakage Dimension (W×H×D)
|
mm
|
2026×527×708
|
2026×527×708
|
||
|
Net Weight/Gross Weight
|
kg
|
62/72
|
58/68
|
||
|

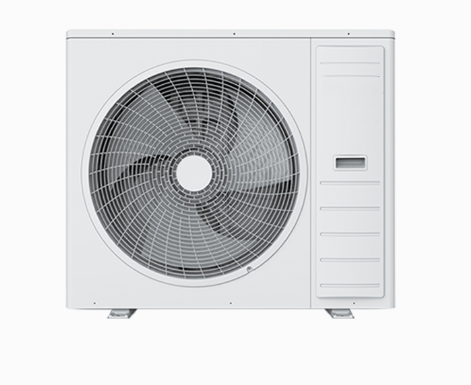

Outdoor Unit
|
Sound Pressure Level
(SH/H/M/L) |
dB(A)
|
60
|
60
|
|
|
Piping Connection
|
Gas
|
mm
|
φ19
|
φ16
|
|
|
Liquid
|
mm
|
φ12
|
φ9.52
|
||
|
Outline Dimension (W×H×D)
|
mm
|
1020×1350×396
|
1020×1350×396
|
||
|
Pakage Dimension (W×H×D)
|
mm
|
1101×1480×448
|
1101×1480×448
|
||
|
Net Weight/Gross Weight
|
kg
|
103/115
|
99/109
|
||
|
Loading Quantity
|
20`GP
|
sets
|
16
|
21
|
|
|
40`GP
|
sets
|
36
|
46
|
||
|
40`HQ
|
sets
|
42
|
52
|
||
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturer that specialized in refrigeration equipment. Our products have abtained the CE.
Q: What kind of delivery for the product?
A: We can arrange the shipping by sea or by air.
Q: How is your after-sales service?
A: All the product is guarantee for one year.And we will supply the technical support after the warranty time. You can contact us 24 hours each day online.
Q: How can I get some samples?
A: We welcome sample order to test and check quality. We can’t offer free sample, please pay the sample and express fee.
Q: How about the packing?
A: packed in carton, can customized different logo according to customers' requirements.
If you have any other questions,you can leave us message or inquiry then we will contact you. Or you can directly call us or
sendus direct mail or fax to consult us.
