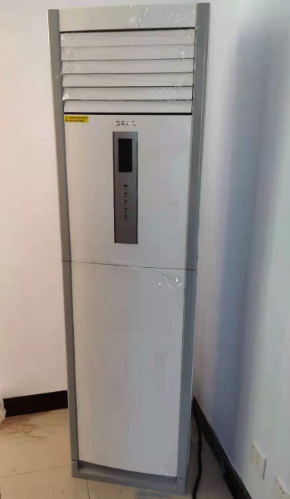

Residential 8000btu Floor Standing Split Air Conditioner 2hp R22 Non Inverter
DELTA Brand home use split air conditioner 18000btu Non- Inverter 2hp R22 cheap floor standing air conditioner
Indoor unit specification
| Indoor unit | Model |
GCHF-18A2/AAP(I)
|
|
| Capacity | Cooling capacity | Btu/h |
18000
|
| kW |
4.700
|
||
| Control type |
Remote
|
||
| Type |
cooling and heating
|
||
| Electrical Parts | Power supply | V~,Hz,Ph |
220-240/50/1
|
| Rated power input | W |
1840
|
|
| Max power input | W |
2200
|
|
| Max current | A |
12
|
|
| Proformance | EER | W/W |
2.55
|
| Air flow Volume | m³/h |
800
|
|
| Noise Level (dB(A)) | Hi/Med/Low |
45
|
|
| Indoor dimension | Unit(W*H*D) | mm |
780×275×575
|
| Packing(W*H*D) | mm |
893×353×620
|
|
| Indoor weight | Net | kg |
33
|
| Gross | kg |
38
|
|
Outdoor unit specification
| Outdoor unit | Model |
GCHF-18A2/AAP(O)
|
|
| Capacity | Cooling capacity | Btu/h |
18000
|
| kW |
5.300
|
||
| Heating capacity | Btu/h |
18700
|
|
| kW |
5.17
|
||
| Electrical Parts | Power supply | V~,Hz,Ph |
220-240/50/1
|
| Air flow Volume | m³/h |
800
|
|
| Noise Level | dB(A) |
54
|
|
| Outdoor Dimension | Unit(W*H*D) | mm |
780×275×575
|
| Packing(W*H*D) | mm |
893×353×620
|
|
| Out door Weight: | Net | kg |
29
|
| Gross | kg |
33
|
|
| Piping size | Liquid Pipe Size | mm |
φ6
|
| Gas Pipe Size | mm |
φ12
|
|
| Max.Pipe Length | m |
15
|
|
| Max.Pipe Difference | m |
5
|
|
| Max. difference in level | m |
5
|
|
| Compressor | Type |
Rotary
|
|
| Brand |
GMCC
|
||
| Refrigerant type |
R22
|
||
| Pressure | High(DP) | Mpa |
2.7
|
| low(SP) | Mpa |
1.7
|
|
We provide good quality service for our clients. If you need sample for testing or showing to your clients,we can deliver the sample by international express.You should pay the sample and express cost.
We can also design the product according to your specific requirement.
We can provide you installation guide.If parts are damaged in the quality insurance period because of our quality,we can change the damaged parts free of charge.
1. Product warranty: Usually, our product warranty is 18 months after leaving factory or 12 months after installation.
2. Delivery time: It will depend on the product quantity. Our products are sold according to order.
3. Installation: If the project needs our installation guidance, we can send our engineer and translator. The expenses shall be borne by the project owner.
