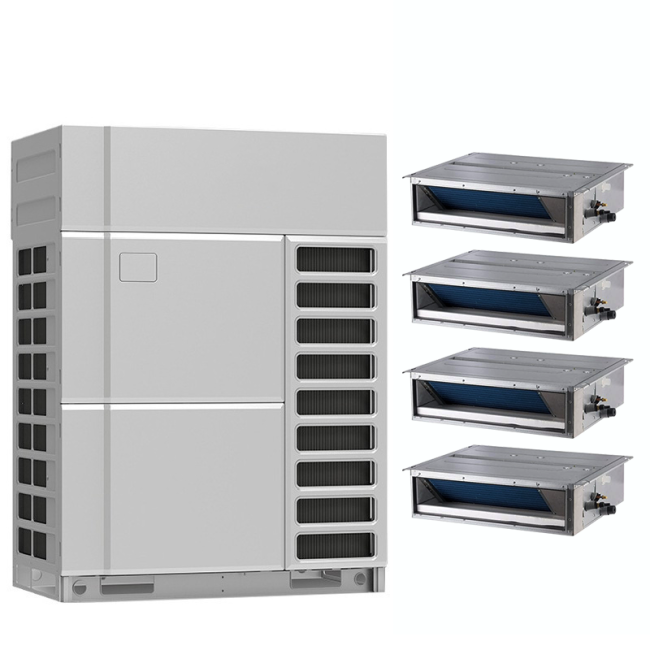

High Efficiency VRF Air Conditioner 3ph Central Noiseless
Puremind High Efficiency Villa Vrf Central Almost noiseless Air Conditioner
Product Details
As the leading VRF product, V6 boasts substantial benefits such as the single capacity can be
up to 90HP which is leading in HVAC industry; EVI compressor significantly increases heating
and cooling capacity under extreme conditions, EMS realizes that evaporating temperature
(in cooling) and condensing temperature (in heating) are automatically adjustedaccording to
both indoor and outdoor temperature to maximize the comfort and energy efficiency. Besides,
the intelligent control system adds more value to V6 product.
| Capacity | 8HP-90HP | |
| Power supply | 220/3/50(60)V/Ph/Hz | |
| Cooling | Capacity | 22.4KW-255KW |
| 76.5-870.9kBtu/h | ||
| Power input | 5.25-82.53KW | |
| EER | 4.27-3.25kW/kW | |
| Compressors | Type | DC inverter |
| Fan motors | Type | DC |
| Max. ESP | 20 default(Pa); 60 Customization Option | |
| Refrigerant | Type | R410A |
| Aiflrow rate | 11000-25000 m3/h | |
| 57-68dB(A) | ||
| Ambient temp | Cooling | -5 to 55ºC |
Product Advantages
1.Wide Capacity Range
For single unit, the footprint is small and maximum capacity is up to 30HP, For combined units,
maximum three 30HP units can be combined with capacity up to 90HP.
2.Wide Operation Range
The VC Pro VRF can Operate stably in a wide ambient temperature range: from -5ºC to 55ºC in
cooling mode.
3.Long Piping Capability
4.Oil Balance pipe not required
With the new oil management system, there is no need of oil balance pipe.
