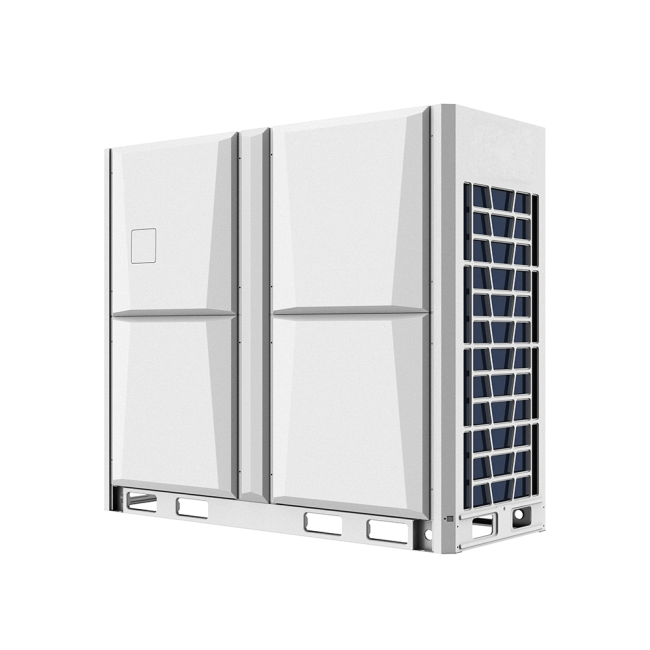

300000btu Vrf Central Air Conditioning System Ceiling Vrv Air Conditioning
Price:
Negotiate
MOQ:
50 sets
Delivery Time:
20-25days
Brand:
DELTA
Product Description
Heating / Cooling Supermarket 300000btu Ceiling Type Air Conditioning VRF VRV System Industrial Central Air Conditioner
Spectification
|
Type
|
Mini VRF
|
Large VRF
|
||
|
Capacity
|
HP
|
3HP-12HP
|
8HP-22HP
|
|
|
Power supply
|
V/Ph/Hz
|
220-240V/1PH/50Hz
208-230V/1PH/60Hz 380-415V/3PH/50Hz & 60Hz |
208-230V/3PH/60Hz
380-415V/3PH/50Hz & 60Hz |
|
|
Cooling
|
Capacity
|
kW
|
8KW~33.5KW
|
25.2KW-61.5KW
|
|
kBtu/h
|
27.3-60kBtu/h
|
86-209.8kBtu/h
|
||
|
Power input
|
kW
|
5.78-14.4KW
|
17-27.65KW
|
|
|
EER
|
kW/kW
|
3.32-3.69
|
3.02-4.72
|
|
|
Heating
|
Capacity
|
kW
|
9KW-37.5KW
|
27.4KW-69KW
|
|
kBtu/h
|
92-191kBtu/h
|
215-341kBtu/h
|
||
|
Power input
|
kW
|
5.41-14KW
|
15.8-26.08KW
|
|
|
COP
|
kW/kW
|
3.56-4.27
|
4.11-5.5
|
|
|
Comperssors
|
Type
|
-
|
DC inverter
|
|
|
Fan motors
|
Type
|
-
|
DC inverter
|
|
|
Max.ESP
|
Pa
|
85
|
85
|
|
|
Refrigerant
|
Type
|
R410A
|
||
|
Aiflrow rate
|
m³/h
|
3300-8000
|
15000-17000
|
|
|
dB(A)
|
45-60
|
58-63
|
||
|
Ambient temp
|
Cooling
|
℃
|
-5-50℃
|
-5-55℃
|
|
Heating
|
℃
|
-20-30℃
|
-30-30℃
|
|
Our Advantages
LONG PIPE & HEIGHT DIFFERENCE
1.The total pipe length: 1000 m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
CONTROLLERS AND SOFTWARESIMPLIFY CENTRALIZED CONTROLLER
Easy to install.Controller connects to outdoor units only.
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
INDOOR UNITS QUANTITY
Max. 100 Indoor units can be connected in ONE system.
FAQ
1.Can you provide drawing design service?
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which
includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which
includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
