Household 48v AC DC Solar Split Air Conditioner 1.5HP Hybrid Electric
12000BTU 1 ton 1.5HP acdc Hybrid cooling Solar Powered Split Air Conditioner
|
No
|
Item
|
Data
|
|
1
|
Cooling capacity
|
3500(1000-3700)w
|
|
2
|
Heating capacity
|
4100(1000-4500)w
|
|
3
|
Rated Input power (cooling)
|
920(260-1320)w
|
|
4
|
Rated Input power (heating)
|
1000(250-1500)w
|
|
5
|
Air Volume
|
600 m³
|
|
6
|
Noise Level (Indoor Unit)
|
≤42dB(A)
|
|
7
|
Noise Level (outdoor Unit)
|
≤52dB(A)
|
|
8
|
Waterproof Protection
|
IPX0
|

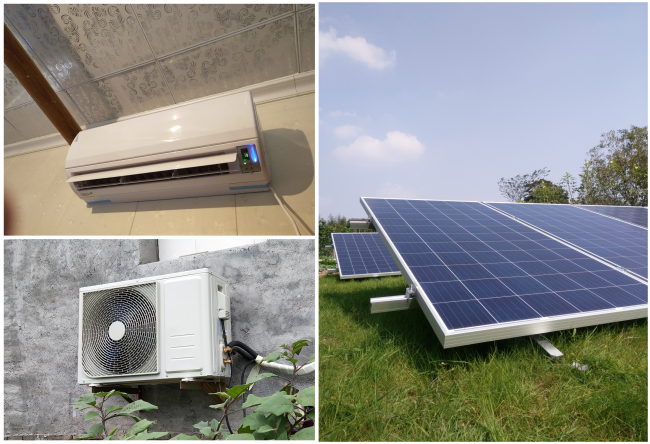

DC Powered Indoor unit
One reason that a Solar Powered Air Conditioner makes the best use of solar power is because there is no loss associated with converting DC power from solar panels into AC power to run a standard air conditioner.
100% DC Powered Outdoor unit
Using standard solar panels which produce native DC power, the 48V DC Solar Powered Air Conditioner avoid the inefficient addition of an "inverter" that converts solar DC current into AC current.
DC Brushless fan motor
We use 48V DC brushless fan motors for both indoor and outdoor units. DC brushless fan motors can greatly reduce energy consumption, and run with super low noise. Plus, the use of a brushless permanent magnet motor driver provides a variable frequency drive that allows the system to dynamically adjust its capacity based on conditions.
Solar Panel
We suggest you to connect 4pcs 340W solar panels to drive each solar powered air conditioner. Both mono-crystalline and ploy-crystalline solar panels can be accepted.
MPPT Solar Charge Controller
A Solar charge controller protects the whole system and provides stable power supply.
Battery
Batteries are the energy bank to reserve energy. We recommend you use 4 x 12V deep cycle gel solar batteries Depending on the system selected and the hours of battery operation you require, you can select the AH of your batteries.
