Wall Mounted 415V VRF Air Conditioner Multi Split Inverter EMS
Wall Mounted VRV System Multi Split central Air Conditioner Inverter VRF
1. R410A refrigerant, environment friendly
2. Modular design, can meet request of different application
3. Compact design and less occupied area
4. Wide operating range
5. Overlong pipe and high drop design
6. Famous brand main components guarantee reliability and stability
|
Item
|
VRF air conditioner
|
|
Model
|
S280
|
|
Cooling Capacity
|
78.5kw
|
|
Heating Capacity
|
87.5kw
|
|
Power Supply
|
380~415V 3N~50Hz
|
|
Refrigerant
|
R134a
|
|
Airflow rate
|
27000 m³/h
|
The factors of choosing VRF system
3 Unique Innovations
● Energy Management System (EMS)

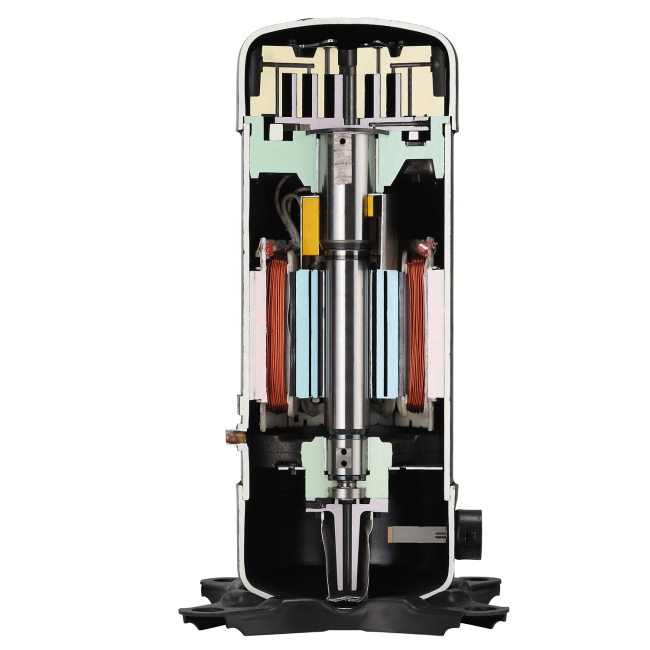

● Enhanced Vapor Injection (EVI) Compressor
● Triple Configurations
High Efficiency
● Plate Heat Exchanger (PHE) Subcooling
● High Efficiency G-Type Heat Exchanger
● Super big size fan
Wide Capacity Range
● 8-96 Hp
Wide Operation Range
● -25-48℃
Long Piping Capability
● Total piping length: 1000m
● Longest piping length – actual (equivalent): 175m
● Longest piping length after first branch: 40/90m
● Level difference between IDUs and ODU – ODU above (below): 90m (110m)
● Level difference between IDUs: 30m
