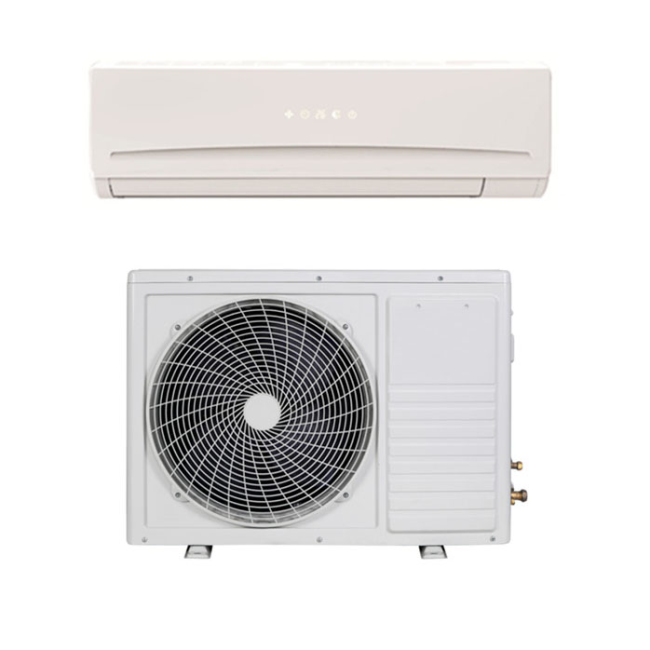

heating pump ODM Residential Split Air Conditioner R410a Inverter Ac Unit Household
Heating And Cooling R410a Inverter Ac Split Heat Pump Household Residential Mini Split Air conditioner
Specifications
| Model No. | R32 12K | ||
| Type | heating pump | ||
| Control type | remote controller | ||
| Declared cooling capacity | W | 3530(1080~3970) | |
| Declared heating capacity | W | 3680(1010~4280) | |
| Pdesignc | W | 3500 | |
| Pdesignh | W | 3000 | |
| SEER declared | W/W | 6.2 | |
| Energy Class | A++ | ||
| SCOP Average declared | W/W | 4.0 | |
| Energy Class | A+ | ||
| Annual energy consumption | Cooling | kwh/a | 198 |
| Heating | kwh/a | 1050 | |
| Moisture removal | Liters/h | 1.1 | |
| Indoor sound power(H/M/L/Mute) | dB(A) | 50/44/36/29 | |
| Outdoor sound power | dB(A) | 60 | |
| Indoor sound pressure(H/M/L/Mute) | dB(A) | 40/34/26/19 | |
| Outdoor sound pressure | dB(A) | 50 | |
| Electrical Data | |||
| Power supply | 220-240V~/50Hz/1P | ||
| Voltage Range | V | 165~265 | |
| Operating current | Cooling | A | 5.1(1.5~6.9) |
| Heating | A | 5.2(1.5~7.2) | |
| Power consumption | Cooling | W | 1094(290~1350) |
| Heating | W | 1025(290~1430) | |
| Refrigerating System | |||
| Refrigerant type/Charge/GWP/CO2 equivalent | R32/0.60kg/675/0.405tonnes | ||
| Indoor air circulation Cooling/heating | m3/h | 550/550 | |
| Indoor fan type | Cross Flow | ||
| Indoor fan model | 1170030067G | ||
| Indoor fan speed H/M/L/Mute | Cooling | rpm | 1150/950/850/700 |
| Heating | rpm | 1150/1000/900/800 | |
| Dry | rpm | 850 | |
| Sleep | rpm | 850/900 | |
| Indoor fan motor output | W | 20 | |
| Outdoor fan type | Propeller fan | ||
| Outdoor brand / fan model | J-30(DC) | ||
| Outdoor fan speed | rpm | 840/760/660 | |
| Outdoor fan motor output | W | 33 | |
Fixed Frequency/Variable Frequency: Variable frequency
Refrigerant gas: R410a
Warranty: 2 years for parts, 5 years on compressor
Brand: OEM&ODM
Power supply Ph/V/Hz: 1/220-240/50
