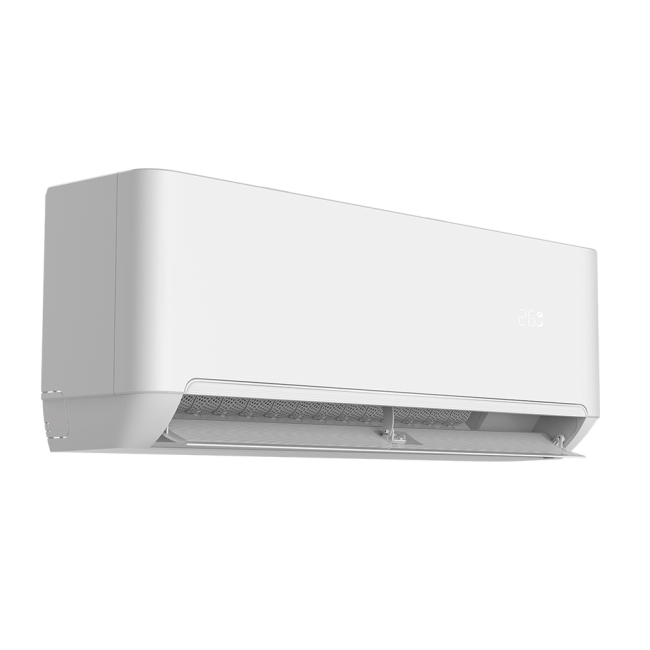

12000BTU Fixed Speed Air Conditioner 220V Split Cooling Only 1 Ton Inverter Ac
airconditioner wall split air conditioner mounted cooling only 12000BTU 1TON Fix Frequency Residential Commercial use
production process
1) Base plates go online
2) Install compressors, condensers and evaporators
3) Assemble and weld copper pipes
4) Recharged with Nitrogen
5) Water-inspection (Check if exist in air leakage)
6) Discharge Nitrogen
7) Vacuum air-removed
8) Add refrigerant
9) Halogen inspection
10) Fix fan component
11) Install electrical control
12) Security checks (Insulation, Ground connection, Dielectric Strength test, Leakage)
13) Run commodity inspection (The noise of components and parts, Function, Timing, shutdown, current, Difference in temperature)
14) Stick nameplate and connection diagram
15) Document attached (Product Manuals, instructions)
16) Final inspection (Appearance parts)
Specifications
| Model No. | 09CSA/* | 12CSA/* | 18CSA/* | 24CSA/* | ||
| Type | cooling only | cooling only | cooling only | cooling only | ||
| Control type | remote | remote | remote | remote | ||
| Rated cooling capacity | Btu/h | 9000 | 12000 | 18000 | 24000 | |
| Moisture removal | Liters/h | 1 | 1.5 | 2.0 | 2.4 | |
| Indoor noise level at cooling | High | dB(A) | 36 | 39 | 42 | 48 |
| Med. | dB(A) | 34 | 36 | 39 | 46 | |
| Low | dB(A) | 32 | 34 | 36 | 44 | |
| Outdoor noise level | dB(A) | 52 | 55 | 58 | 60 | |
| Power supply | 220~240V~/50Hz | |||||
| Voltage Range | V | 198~264 | 198~264 | 198~264 | 198~264 | |
| Rated current | Cooling | A | 4.2 | 5.5 | 8.5 | 11.2 |
| Rated input | Cooling | W | 930 | 1220 | 1870 | 2470 |
| Annual energy consumption | kwh (cooling) | 465 | 610 | 935 | 1235 | |
| Max Current | Cooling | A | 5.5 | 7.2 | 11.1 | 14.6 |
| Max Power input | Cooling | W | 1200 | 1590 | 2430 | 3210 |
| Refrigerant/Charge | Gram | R410A | R410A | R410A | R410A | |
| Indoor air circulation(Cooling) | m3/h | 480 | 520 | 780 | 780 | |
| Indoor fan type | Cross flow | Cross flow | Cross flow | Cross flow | ||
| Outdoor fan type | Propeller | Propeller | Propeller | Propeller | ||
| Connecting Pipe | Gas | mm | Φ9.52(3/8'') | Φ12(1/2'') | Φ12(1/2'') | Φ15.88(5/8'') |
| Liquid | mm | Φ6(1/4'') | Φ6(1/4'') | Φ6(1/4'') | Φ9.52(3/8'') | |
| Connecting Wiring | Size x Core number | 1.0x3 | 1.0x3 | 1.5x3 | 4×0.75 | |
| Suitable area | m2 | 9~16 | 15~23 | 20~35 | 30~50 | |
| Net dimensions (W x H x D) | Indoor | mm | 718×240×180 | 770×240×180 | 900×280×202 | 900×280×202 |
| Outdoor | mm | 600×232×500 | 700×256×552 | 760×256×552 | 902×307×650 | |
| Packing dimensions (W x H x D) | Indoor | mm | 805×305×255 | 855×305×255 | 985×365×298 | 985×365×298 |
| Outdoor | mm | 745×353×550 | 803×361×600 | 863×361×590 | 1028×430×705 | |
| Net weight | Indoor | kg | 6 | 7 | 10 | 10 |
| Outdoor | kg | 24 | 29 | 35 | 51 | |
| Gross weight | Indoor | kg | 8 | 10 | 13 | 13 |
| Outdoor | kg | 27 | 33 | 39 | 57 | |
| Loading Capacity | 20'/40'/40'HC | 132/277/310 | 103/235/275 | 95/198/222 | 61/132/156 | |
Product Details
Air purification system
With air purification technology,you can enjoy a living space that is fresher and cleaner.
Comfortable life
The multi-functionality set provides you with a high quality of life and allows you to enjoy life.
