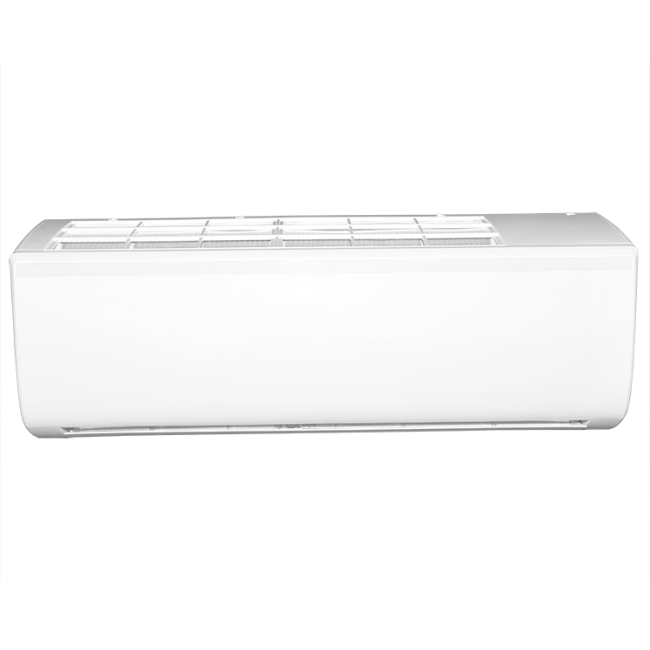

9000btu AB Panel Fixed Speed Air Conditioner Split Wall Mounted 220v 50hz
Air Conditioner (9000BTU, AB PANEL, SPLIT WALL-MOUNTED TYPE FIXED SPEED MODEL, 220~240V/50Hz, R410AA GAS, COOLING ONLY)
Product Introduction
1, World famous brand rotary type compressor
2, High Efficient Internal Thread Copper pipe for condenser and evaporator
3, LED digital display, Best Visibility
4, Self-diagnose capability, error code showing for detection convenience
5, Intelligent Defrost, Independent De-humidification, Sleep Mode, Quiet Operation
6, Low Voltage Startup, Auto-protection, Auto Restart
7, Optional Refrigerant: R410A & R22
8, Optional Voltage: 220V/50Hz & 220V/60Hz & 110V/60Hz
Specifications
| Model No. | X-09CS | ||
| Rated cooling capacity | BTU/h | 9000 | |
| Indoor noise level at cooling | High | dB(A) | 36 |
| Med. | dB(A) | 34 | |
| Low | dB(A) | 31 | |
| Outdoor noise level | dB(A) | 50 | |
| Moisture removal | Liters/h | 1.0 | |
| Power supply | 50HZ/220V | ||
| Voltage Range | V | 198~264 | |
| Rated current | Cooling | A | 4.1 |
| Rated input | Cooling | W | 900 |
| Max Current | Cooling | A | 5.5 |
| Max Power input | Cooling | W | 1170 |
| Refrigerating System | |||
| Refrigerant/Charge | Gram | R22/520g | |
| Capacitor | uF | 25 | |
| Fan System | |||
| Indoor air circulation | (Cooling/Heating) | m3/h | 430 |
| Indoor fan type | Cross flow | ||
| Indoor fan speed H/M/L | Cooling | rpm | 1150/1050/950 |
| Dry | rpm | 950 | |
| Sleep | rpm | 950 | |
| Indoor fan motor output | W | 15 | |
| Capacitor | uF | 1.5 | |
| Blower | Dia x Langth | mm | 88*545 |
| Outdoor fan type | Propeller | ||
| Outdoor fan speed | rpm | 850 | |
| Outdoor fan motor output | W | 20 | |
| Capacitor | uF | 2 | |
| Fan | Diameter | mm/In. | 324 |
| No. of Blade | Pieces | 3 | |
| Connections | |||
| Connecting Pipe | Gas | Inches | 3/8'' |
| Liquid | Inches | 1/4'' | |
| Others | |||
|
Net dimensions (W x H x D) |
Indoor | mm | 718×180×240 |
| Outdoor | mm | 600×500×232 | |
| Net weight | Indoor | kg | 7 |
| Outdoor | kg | 24 | |
|
Packing dimensions (W x H x D) |
Indoor | mm | 805×305×255 |
| Outdoor | mm | 690×305×545 | |
| Gross weight | Indoor | kg | 9 |
| Outdoor | kg | 26 | |
| Loading Capacity | 40’HC | 360 | |
A: We are a manufacturer that specialized in air conditioning equipment. Our products have obtained the CE.
Q: What kind of delivery for the product?
A: We can arrange the shipping by sea or by air.
Q: How is your after-sales service?
A: All the product is guarantee for one year.And we will supply the technical support after the warranty time. You can contact us for issues
24 hours each day online.
Q: How can I get some samples?
A: We welcome sample order to test and check quality. We can’t offer free sample, please pay the sample and express fee.
Q: How about the packing?
A: packed in carton, can customized different logo according to customers' requirements.
If you have any other questions,you can leave us message or inquiry then we will contact you. Or you can directly call us or
send us direct mail or fax to consult us.
