0.7mm 380v 480v Metal Roofing Machine , Steel Roof Sheet Making Machine
380V 480V Roofing Sheet Machine With 15m Speed
1. Brief introduction of Roof Tile Making Machine
1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.One year warranty.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
2. Roof Tile Making Machine specifications
|
SPECIFICATIONS FOR Auto Steel Tile Roll Forming Machine
|
|||
|
Decoiler
|
5TON manual decoiler
|
Optional hydraulic decoiler
|
|
|
Main forming machine
|
forming steps
|
14-18 stations
|
|
|

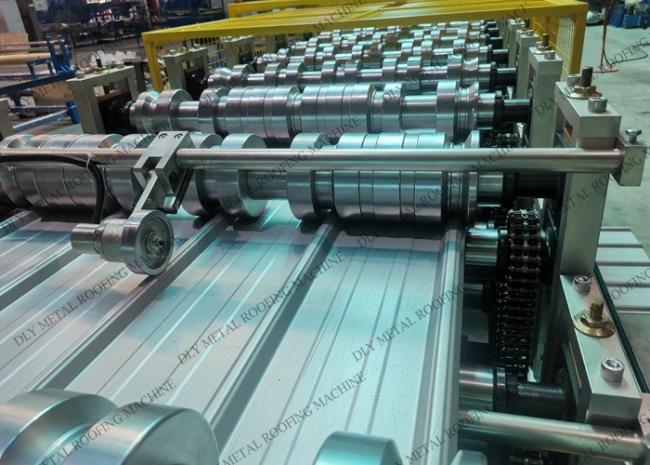

rollers
|
45#steel,surface chrome 0.03-0.05mm, Hard chrome mirror polishing, ensure roller smooth. Spacers must lathe inner holes, and do Chrome plating;
|
||
|
shafts:
|
70/75mm 45#steel,quenched
|
||
|
Cutting system
|
Cutter blade
|
Cr12Mov, thickness 20mm
|
|
|

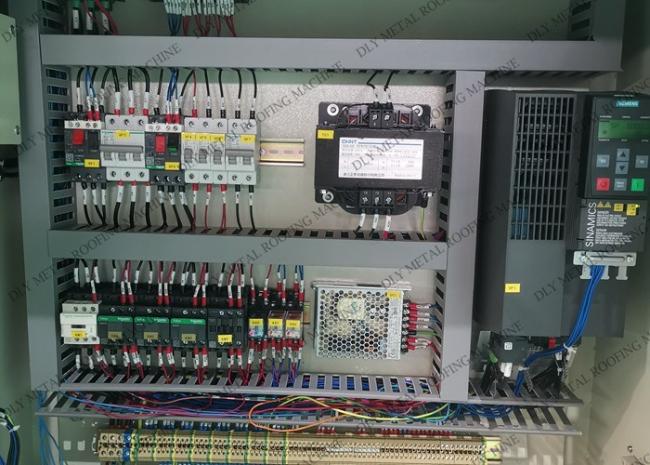

Control system
|
PLC
|
Delta
|
|
|
Transducer
|
Delta
|
||
|
Touch Screen
|
Delta
|
||
|
Power
|
380V, 3Phase, 50Hz or as required
|
||
|
Run out tables
|
3m per set
|
2 sets
|
|
1.Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine cotrolling by PLC computer controlling systerm.
5.Elegant apperance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.

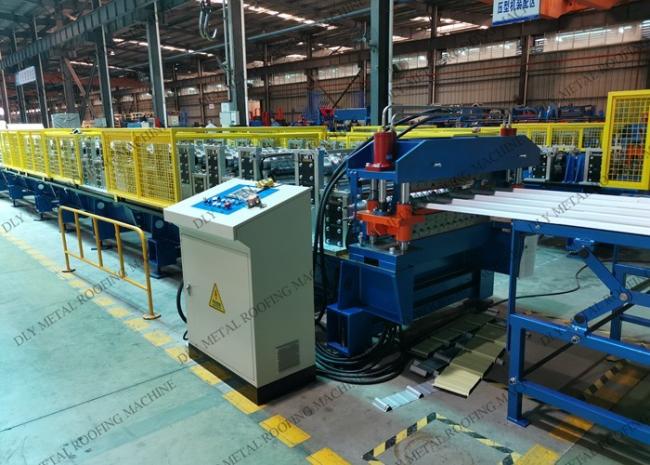

4. Machine Detals and Container Load of Roof Tile Making Machine
Our roll forming machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!
