1. Description of Roofing Forming Machine
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
2. Specifications of Roofing Forming Machine
NO. | Item | Specification |
Material | Raw material | Galvanized steel or PPGI |
Thickness | 0.3-0.8 mm | |
Machine | Roller station | 13 or depend on customer' drawing |
Shaft diameter | 75 mm | |
Solid shaft material | High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment | |
Roller material hardness 30-40 HRC | Cr12 | |
Machine color | As customer need | |
Working speed | 8-20 m/min | |
Cutter | Hardness | 50-65 HRC |
Cutting tolerance | ± 1mm | |
Material | Cr12 | |
Operate | Hydraulic cutting | |
Power | Driving way | Chain 1 inch |
Main motor | 4 KW | |
Pump motor for cutter | 3 KW | |
Voltage | 380V/50HZ, 3P or Customized as customer' request | |
PLC brand | Delta made in Taiwan | |
Screen | Touchable screen | |
Language | Chinese and English or add customer need language | |
Operation | Manual | |
Weight capacity | 5 Tons | |
Price | Free as gift | |
Receive table | Operation | Manual |
Length | 3 m | |
Price | Free as gift |
3. Feathers of Roofing Forming Machine
- We Will use the rubber roller at leveling part to protect the coil surface.
- We will add two more gears for feeding coil smoothly.
- For the roller, we will do the chroming for long time use and beautiful.
- For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
- Use special special design of cutting system for cutting fast and the cutter can use long time.
- Good quality hydraulic jacks.
- Use strong thickness frame and holder.
- We will give remoter for control machine easily.
4. Production Flow of Roofing Forming Machine
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

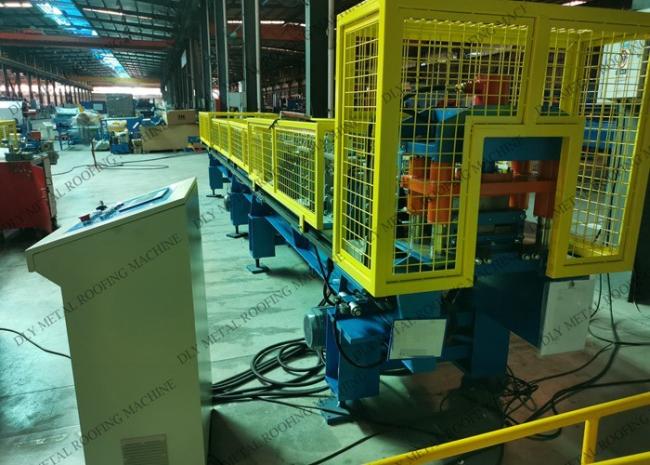

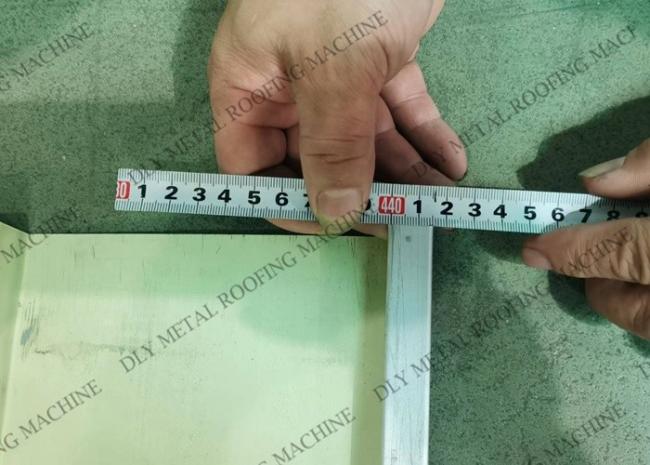

5. Details of Our Roofing Forming Machine
