50hz 7500mm Metal Roofing Double Layer Roll Forming Machine / Equipment Hydraulic Driving
50Hz Double Deck Roll Forming Machine 7500Mm Metal Roofing Forming Equipment
1. Brief introduction of Double Layer Forming Machine
o Thickness of material : 0.3 mm ~ 0.8 mm
o Forming speed: 15~25 m/min.
o Hydraulic driving and cutting system.
o Hard chrome coated rollers.
Advantages
o Customized profile and suggestions.
o Material handling solutions.
o Anti-capillary grooves, Embossing, Logo Marking.
o Full safety protection with cover guard, emergency switches, mistake proofing program.
2. Specifications of Double Layer Forming Machine
|
No
|
Item
|
Parameter
|
|
1
|
Decoiler
|
5tons electric decoiler (Hydraulic decoiler optional), manual one free
|
|
2
|
Forming speed
|
12-18m/min
|
|
3
|
Material
|
G235grade steel or galvanized coil
|
|
4
|
Thickness
|
0.3-0.7mm
|
|
5
|
Forming steps
|
14 +13forming steps
|
|
6
|
Shaft
|
Diameter 75mm, all solid
|
|
7
|
Rollers
|
High grade 45# steel with heat treatment and hard chrome coating 0.04-0.05
|
|
8
|
Main frame system
|
H350 steel. By blasting
|
|
10
|
Main forming power
|
5.5kw.
|
|
11
|
Pump Station Power
|
4Kw, or electric cutting for 3kw
|
|
12
|
Cutting Type
|
hydraulic cutting or electric cutting
|
|
13
|
Cutting Blade
|
Cr12Mov with hard treatment, HRC52-68
|
|
14
|
Control System
|
Delta PLC, Touch screen, Frequency converter
|
|
15
|
Measuring accuracy
|
Precision +/-1.5mm,with frequency converter
|
|
16
|
Transmission
|
By single chain 1’
|
|
17
|
Machine Dimensions
|
About 6.5*1.5*1.7m
|
|
18
|
Machine weight
|
About 4,000 kgs
|
|
19
|
Voltage
|
380V,50hz, 3phase, as per request
|
3. Customer Feedback of Double Layer Forming Machine
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

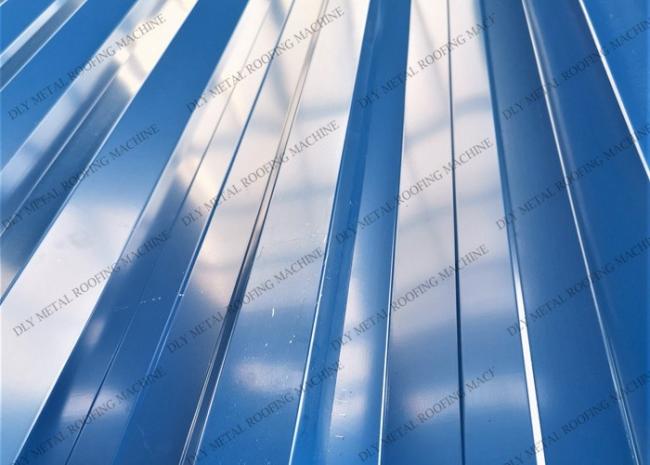

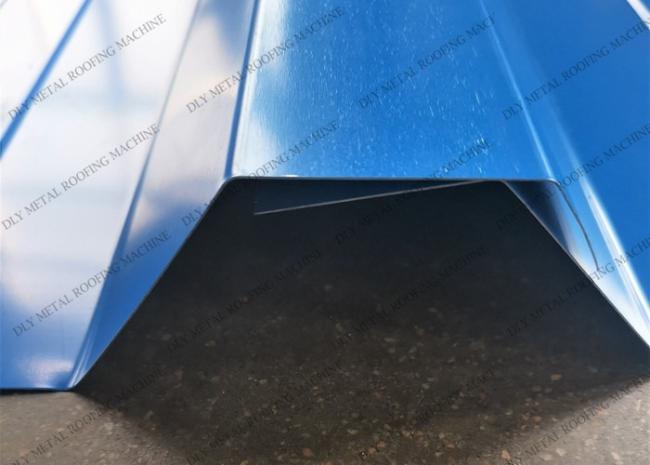

4. details photos of Double Layer Forming Machine
