380v 220V U 22kw Purlin Forming Machine Metal Sheet Roof Panel Tile Making
380V U Purlin Roll Forming Machine Metal Sheet Roof Panel Tile Making Machine
1. Description of C U Z Purlin Roll Forming Machine
Machine Parts
1) CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.
2) interchange cz cold rolled purlins machine rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options.With feeding material guide, body framemade from 400# H type steel by welding
3) interchange cz cold rolled purlins machine post cutter
No need to change cutter for different size,made by high quality mold steel Cr12 with heat treatment, Cutter frame made from high quality 30mm steel plate by welding. Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
4)interchange cz cold rolled purlins machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
5)interchange cz cold rolled purlins machine exit rack
Un-powered,two unit (3m*2)
2. Specifications of C U Z Purlin Roll Forming Machine
| Profile | Web | Flange | Lip | Thickness |
| C | 80-300mm | 40-80mm | 10-25mm | 1.2-3.2mm |
| Z | 120-300mm | 40-80mm | 10-25mm | 1.2-3.2mm |
| Yield strength | 195Mpa | 235Mpa | 345Mpa | 550Mpa |
| Thickness | 1.2mm-3.2mm | 1.2mm-3.0mm | 1.2mm-2.7mm | 1.2mm-2.5mm |
| Slotted hole | Round hole |
| 14x26mm(HOR.) | D14mm |
| 16x26mm(HOR.) | D16mm |
| Equipment series | Post-punch Post-cut |
| Phase/voltage/frequency | Customize |
| Driven type | Servo-motor |
| CZ inter-change type | Manual |
| Size inter-change type | Electric |
| Pre-cutter | Optional |
| Flange punch | Optional |
| Decoiler | Manual decoiler |
| Hydraulic decoiler (Optional) | |
| Production capacity | Maximum 35m/min |
| Length tolerance | ±1.5mm |
3. Profiles of C U Z Purlin Roll Forming Machine
4. FAQ
● What is your machine warranty?
some quick-wear parts will be container together with machine.
if some parts damaged within one year, we will send new one to you for free, just freight up to you.
● Is it complicated to operate the machine?
It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.
● How many different profile roofing one machine can produce?
One machine can produce one or two different profiles.

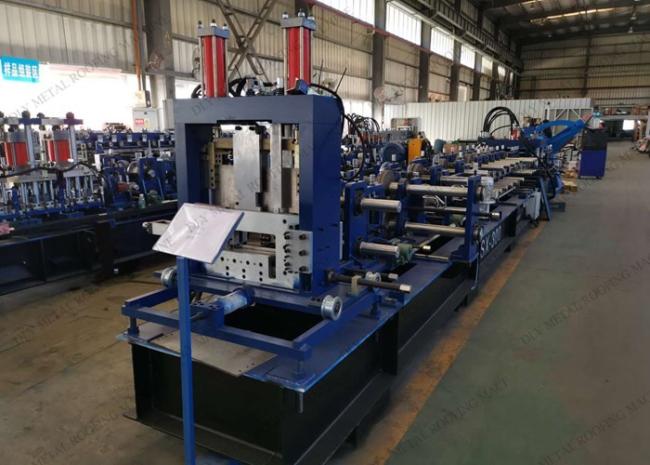

5. Detail photos of C U Z Purlin Roll Forming Machine
