8m Color Steel Roof Panel Machine PU 300kw Sandwich Panel Equipment

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 80 days

Brand: DLY

Product Description

8m/Minute 300kw Automatic Metal Roof Panel Machine For PU And PIR

1. Main technical parameter of Metal Roof Panel Machine

Item		parameter
material	type	color steel sheet, galvanized sheet, aluminium sheet
	thickness	0.4mm - 0.8mm
	width	≤1250mm
suitable size of panel	length	2000mm - 16000mm
	width	600mm - 1200mm
	thickness	30 -200 (not including height of corrugation
production speed		3m - 8m (Adjustable)
valid length of double belt conveyor(mm)		16000 - 36000
work pressure on pouring foam		150 - 200
total power		about 300 kw
total size (LwH) mm		130000150006000

2. Working Process Layout Of PU/PIR Sandwich Panel Production Line Metal Roof Panel Machine

Decoiling System - Filming Slitting And Cutting - Roll Forming System - Rockwool System - Pre Heating - Foaming Accessories -
Double Belts System - Bandsaw Cutting System - Cooling System - Stacking System - Packing System - Electrical Control System

3. Features of PU/PIR Sandwich Production Line

Beautiful and applicable, multiple functions, such as thermal isolation, sound isolation and flame retardance.
Using heated air recycle oven, strictly control the temperature of PU foaming and solidification in suitable range.
Using high-pressure foaming system, precise measurement, high stability, little dust in the locale, protect the worker's health.
Using 141B or Pentane as foaming agent. Instead of carbon chloral-fluoride, make the PU foaming treatment become an environmental production craft.
Special double belt conveyor, flat surface of sandwich panel, even thickness, anti-pattern
Operation system controlled by PLC computer, personal design and simple operation.

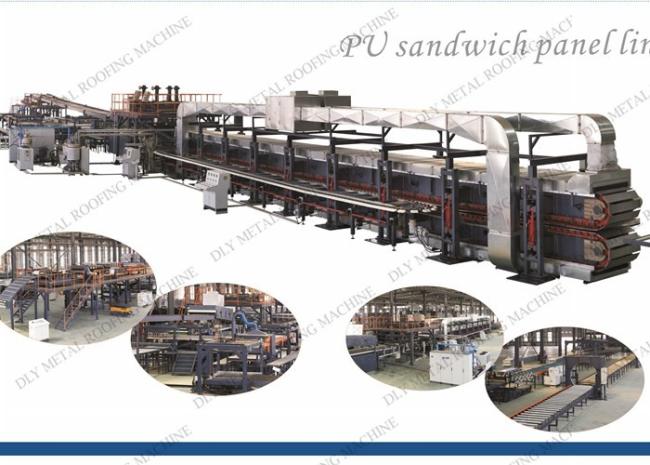

4. Detail pictures of Metal Roof Panel Machine
