Clip Relief Snap Lock Metal Roofing Machine Cr12 Standing Seam Roof Panel Equipment
Price:
Negotiable
MOQ:
1 set
Delivery Time:
40 days
Brand:
DLY
Product Description
Clip Relief Metal Automatic Snap Lock Metal Roofing Machine For Wall And Roof
1. Description of Snap Lock Metal Roofing Machine
- Manually operated E-Z cut shear
- One steel reel
- Two reel decoiler with friction brake
- Automatic screw/nail hole slotter
- All forming rollers industrial hard chrome plated
- Length control limit switch
- 40 feet of run-out-table
- 10 forming stations
2. Specifications of Snap Lock Metal Roofing Machine
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 19 Rows |
| 3 | Dimensions | 8*1.5*1.6m |
| 4 | Motor Power | 5.5KW |
| 5 | Pump Station Motor | 3KW. Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment HRC58-60 |
| 9 | Diameter of the roller | 75mm |
| 10 | Weight | About 5000kgs |
| 11 | Main structure of the machine | 400H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer's need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance |
±2mm |
3. Features of Snap Lock Metal Roofing Machine
- 6 Urethane drive rollers
- Free-floating forming rollers mounted
- Two sets of bead rollers included
- Easy adjustable width of panel from 12” - 24”
- Includes clip relief rollers
- Easy change to different various profiles (custom design available)
- Manual Exit end shear
- Material width 11” to 30.5”
- Limit switch for length control
- Liberty wireless control For/Rev Start/Stop
- This advanced machine comes with the any available profile up to your choice.
- Tooling rollers are interchangeable so you can order extra tool set or few.

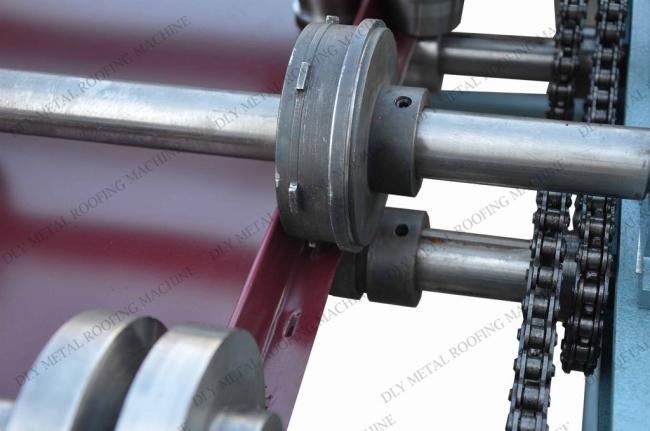

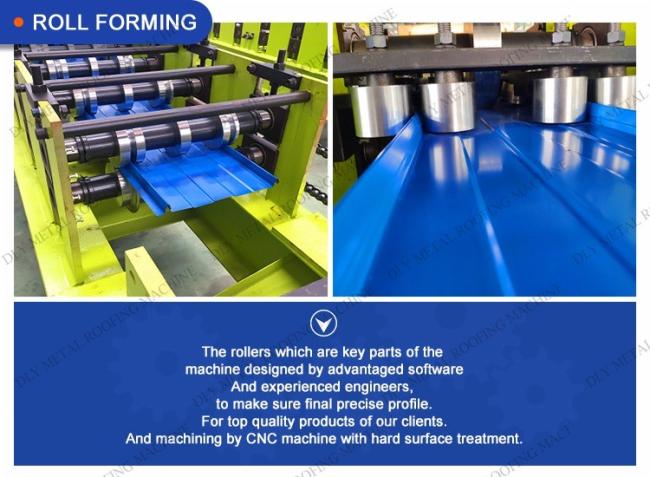

4. Detail pictures of Snap Lock Metal Roofing Machine
