Hydraulic Cutting Cr12 Ridge Cap Machine 10KW Ridge Metal Roof Tile Equipment
Price:
Negotiable
MOQ:
1 set
Delivery Time:
40 days
Brand:
DLY
Product Description
10KW PLC 380V Ridge Cap Forming Machine With 10m Speed
1. description of Ridge Cap Forming Machine
Ridge Cap Forming Machine makes different shape of color steel ridge cap sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 400mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
2. Specifications of Ridge Cap Forming Machine
| No. | Item | Specifications |
| 1 | Coil Width | 1000mm |
| 2 | Diameter of shaft | 70mm |
| 3 | Forming Speed | 8-12meters/min |
| 4 | Middle plate | 16mm |
| 5 | Material of shaft | 45#steel with tempering |
| 6 | forming thickness | 0.2mm-0.6mm |
| 7 | material of rollers | 45#steel |
| 8 | Cutting type | hydraulic -cutting |
| 9 | Main power | 4kw+3kw |
| 10 | Main frame | 300H steel |
| 11 | Control system | PLC |
| 12 | Brand of electrical parts | Delta |
| 13 | Manual decoiler | 5 tons |
| 14 | Power | 3 Phase,380 Voltage,50Hz |
| 15 | Dimensions(L*W*H) | About 6.5*1.2*1.2M |
| 16 | Weight | about 3 tons |
3. Guarantee of Ridge Cap Forming Machine
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

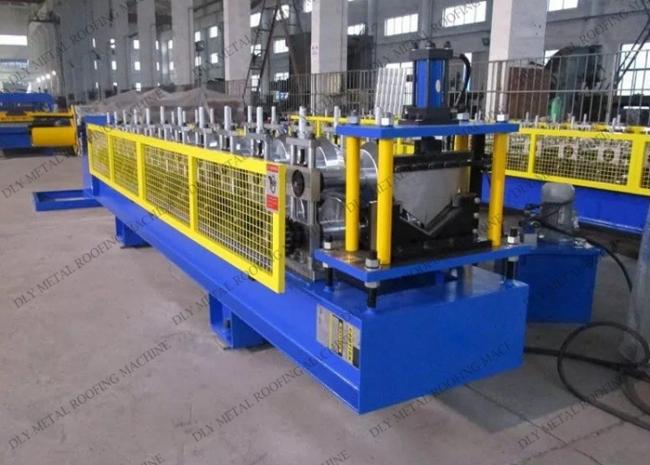

4. details photos of Ridge Cap Forming Machine
