Hydraulic Cutting 3P Corrugated Roofing Machine 6000mm Roof Tile Roll Former
Automatic 380V Hydraulic Cutting Corrugated Roofing Machine With Sinus Profile
1. Description of Corrugated Roofing Machine
Corrugated Roofing Machine was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.
this profile is very popular used for roofing, every month have this profile machine in production.
Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.
2. Specifications of Corrugated Roofing Machine
| Part details | Item Name | Specification |
| Manual uncoiler | carrying capacity | 3-5 tons |
| Stype | Manual | |
| Raw coil | Coil material | steel |
| Coil thickness | 0.3-0.8 mm | |
| Machine body | Roller station | 15 station |
| Roller material | 45# steel | |
| Shaft material | 45# steel | |
| Shaft diameter | 55 mm | |
| Machine weight | About 4.5 tons | |
| Machine size | 4.5 *1.3*1.4 m | |
| Speed | 0-9 m/min | |
| Cutter | Operate | Hydraulic cutting |
| Blade material | Cr12 | |
| Power | Operate | Chain transmission |
| Chain size | 1 inch chain | |
| Control system | PLC brand | Taiwan delta |
| Motor power | 5.5 kw | |
| Hydraulic pump power | 3 kw | |
| Voltage | 380V 50Hz 3phase | |
| Machine color | As ur need | |
| Machine language | Chinese and English |
3. workflow of Corrugated Roofing Machine
Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table
4. FAQ
● What is your machine warranty?
some quick-wear parts will be container together with machine.
if some parts damaged within one year, we will send new one to you for free, just freight up to you.
● Is it complicated to operate the machine?
It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.
● How many different profile roofing one machine can produce?
One machine can produce one or two different profiles.

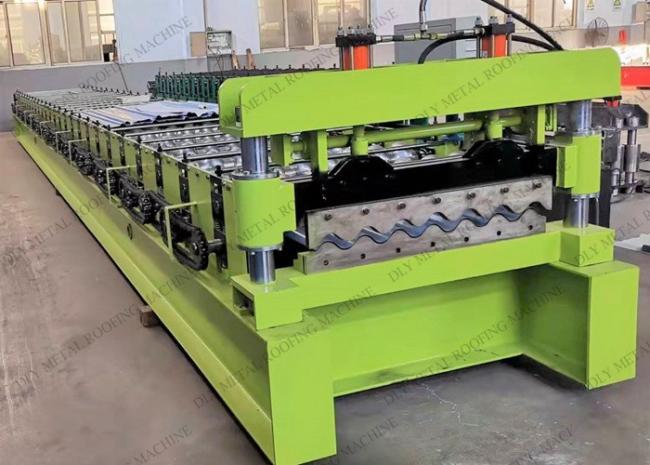

5. details of Corrugated Roofing Machine
