0.05mm Colored Steel Pipe Profiling Machine 2.2kw Square Pipe Roll Forming
Gutter Downspout 380v 5.5kw Pipe Profiling Machine With Hydraulic Cutting
1. Description of Pipe Profiling Machine
* Type of controlling: adopt strong electric controlling
* Main motor power: 2.2kw
* Max curving angle: 90 degrees.
* Functions: curving and biting
* Curving speed: 0-15m/min
* Dimension: 1300*650*1500mm
The Downspout profile is not fixed. Most of time, we are especially manufacturing machines according to different technical requirements.
2. Specifications of Pipe Profiling Machine
|
Suitable steel plate
|
Type | Color steel plate |
| Thickness | 0.3-1.0mm | |
| Feeding width | As users needs | |
| Effective width | As users needs | |
| Production speed | 8-12m/min | |
| Roller stand | 12 rows | |
| Roller Diameter | 52mm | |
| Main power | 4kw | |
| Pump power | 3kw | |
| Side panel of machine | 14mm | |
| Roller material | Carbon 45# steel | |
| Blade material | Cr12, quenched, Cr-plating size 0.05mm | |
| Control system | Delta PLC control | |
| Main structure of the machine | 400mm H-Beam | |
Passive uncoil— Feeding—Roll forming—Cut to length—Output table—Elbow with pipe
| No. | Item | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main roll forming machine | set | 1 |
| 3 | Main machine of composting | set | 1 |
| 4 | PLC control box | set | 1 |
| 5 | Supporter table | set |
1 |

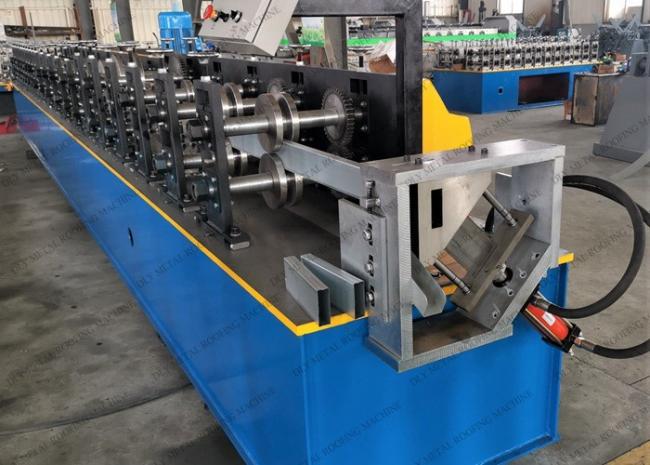

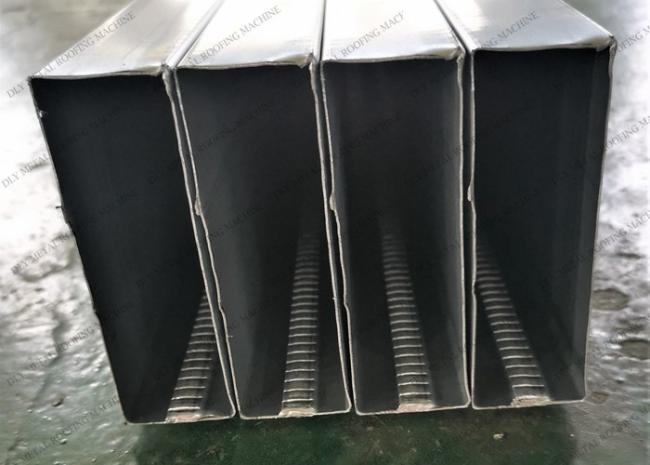

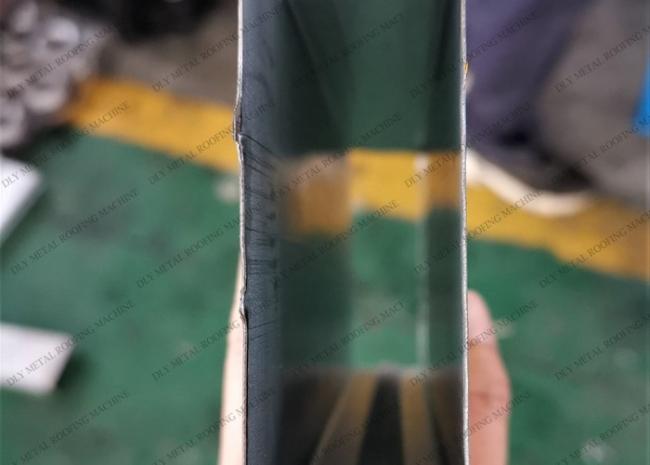

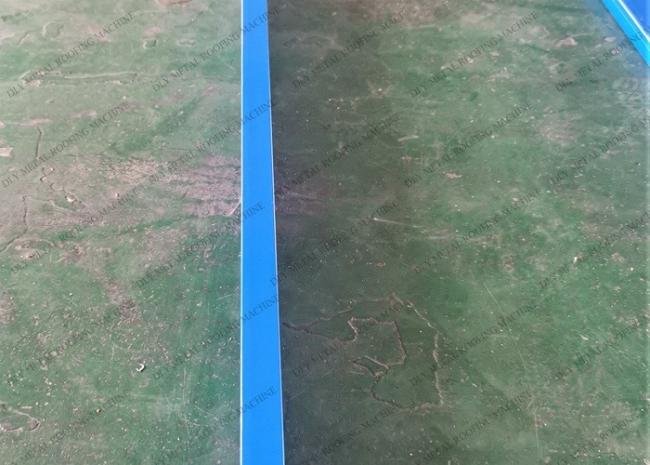

4. Detail Photos of Pipe Profiling Machine
The processing and detail of each part, the assembly of the machine, all determine the quality of a machine. We strive to do a good job in every link, every process, so that the machine in the process of use can be more stable, longer service life.
