ASTM AISI DIN DX51D Galvanized Steel Coil Anti Fingerprint For Construction
ASTM AISI DIN DX51D Galvanized Steel Coil Anti Fingerprint For Construction
DX51D is a European standard, galvanized with 51 steel coil raw materials, equivalent to SGCC. DX51D refers to the bending and forming grade galvanized steel coil sheet, the steel grade serial number is 51, with low carbon steel as the base material.
Applications:
galvanized steel coils and sheets are also pollution-free and easily recycled. Accordingly, they can be used as final products and basic plates of color coated steel coils and widely applied in construction, home appliances, decoration,etc.
Galvanized steel coils are widely used in the construction industry,as raw material for the production of corrugated panels,fencing products,etc
Specification

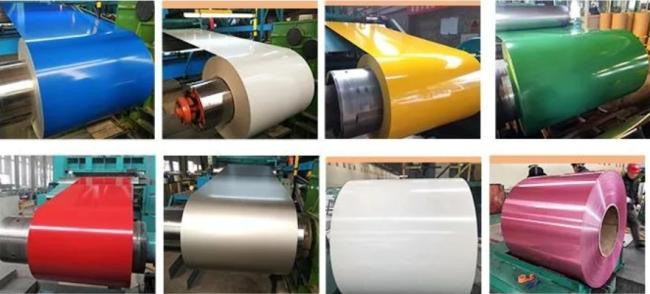

| Product | PPGI galvanized steel coil |
| Material | DX51D |
| Width | 600mm-1500mm |
| Length | As required |
| Thickness | 0.14mm-3.0mm |
| Zinc coating | 40-275g/m2 |
| Painting Thickness | Top side: 20+/-5microns |
| Bottom side: 7+/-2microns | |
| Surface treatment | Big, small, zero, regular spangle Chromate treatment /chromate-free treatment /untreated unoile/oiled |
| Color | All RAL color |
| Coil ID | 508mm/610mm |
| Coil weight | 3-8 Metric tons |
| Usage | Roof structure, surface sheet of balcony,frame of window,door, etc |
| Packaging Details | Export packing or as your demand |
| Payment Terms |
L/C,T/T |
|
STEEL GRADE |
CHEMICAL COMPOSITION % |
MECHANIC PROPERTY |
C.B OF COATING |
COATING |
||||||||
|
|
C |
Si |
Mn |
S |
P |
T.S |
Y.S |
E.L |
||||
|
|
x103 |
x103 |
x102 |
x103 |
x103 |
Mpa |
Mpa |
% |
d=0 180° |
G/M² |
||
|
JIS G3302 SGCC |
12 |
30 |
41 |
31 |
21 |
480 |
300 |
13 |
OK |
Z60-150 |
||
|
JIS G3302 SGCH |
12 |
10 |
21 |
18 |
8 |
680 |
650 |
|
OK |
Z60-150 |
||
|
ASTM A653 CS.B |
20 |
30 |
60 |
35 |
30 |
386 |
205~380 |
20 |
OK |
Z80-275 |
||
|
DX51D+Z |
29 |
21 |
18 |
1.8 |
11 |
355 |
245 |
38 |
OK |
Z80-275 |
||
|
G550 |
20 |
6 |
73 |
5 |
17 |
715 |
654 |
8 |
OK |
Z80-275 |
||
