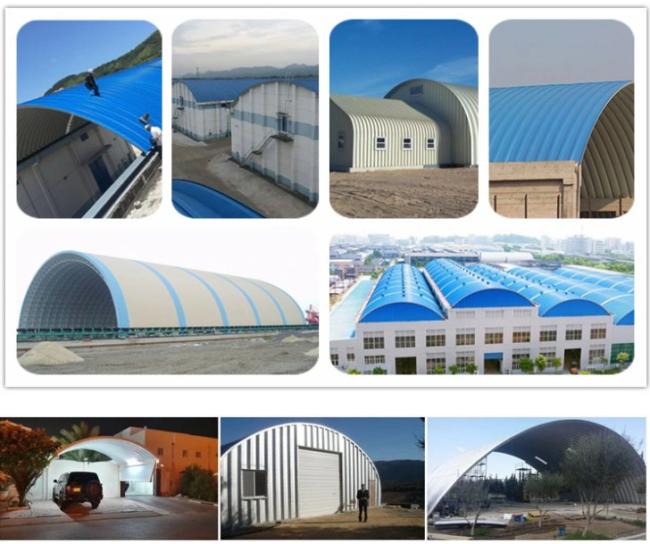

Mesco PPGL Steel Coil Aluzinc Prepainted Galvalume Steel Coil Az150 For Civil Buildings
Mesco PPGL Aluzinc Prepainted Galvalume Steel Coil Az150 for Civil Buildings

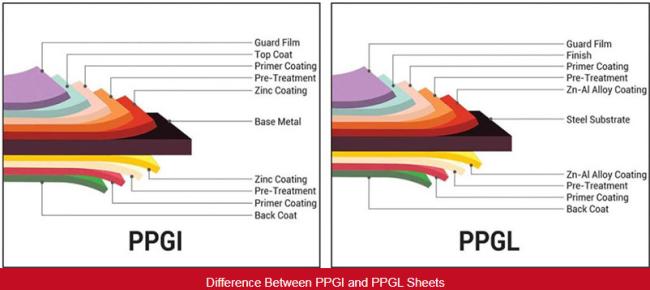

PPGI VS PPGL

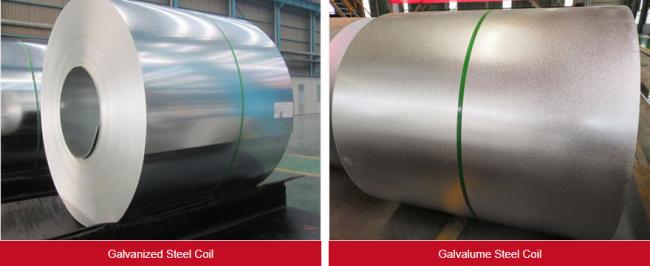

PPGI is short for pre-painted galvanized steel, while PPGL is short for pre-painted galvalume steel. As the name suggests, PPGI uses galvanized sheets (with a layer of zinc coating) as base metal. While PPGL is with galvalume sheet as substrate, which is coated with 55% aluminum, 43.3% zinc, and 1.6% silicon. This is the main difference between PPGI and PPGL, which will further influence their features and applications.
PPGL Specification
| Substrate | DX51D, ASTM a653 |
| Thickness | 0.13-0.8 mm |
| Width | 600-1250 mm |
| Zinc | 20-120g |
| Paint | Top paint : 10-30mic Back paint: 5-25 mic |
Mechanical Properties
Mechanical properties of the substrate(galvalume steel)
| Grade | tensile strength MPa | Elongation after breakingc A 80mm % not less than |
|---|---|---|
| DX51D+Z | 270～500 | 22 |
Properties of PPGL(pre-painted galvalume ) steel coil substrate.
| Grade | Yield Strength MPa | tensile strength MPa | Elongation after breaking A 80mm % not less than |
|---|---|---|---|
| DC51D+AZ | - | 270～500 | 22 |
| DC52D+AZ | 140～300 | 270～420 | 26 |
| DC53D+AZ | 140～260 | 270～380 | 30 |
| DC54D+AZ | 120～220 | 260～350 | 36 |
