Low Temperature Liquid Cryogenic Storage Tank Full Automatic
Low Temperature Liquid Cryogenic Storage Tank
Description

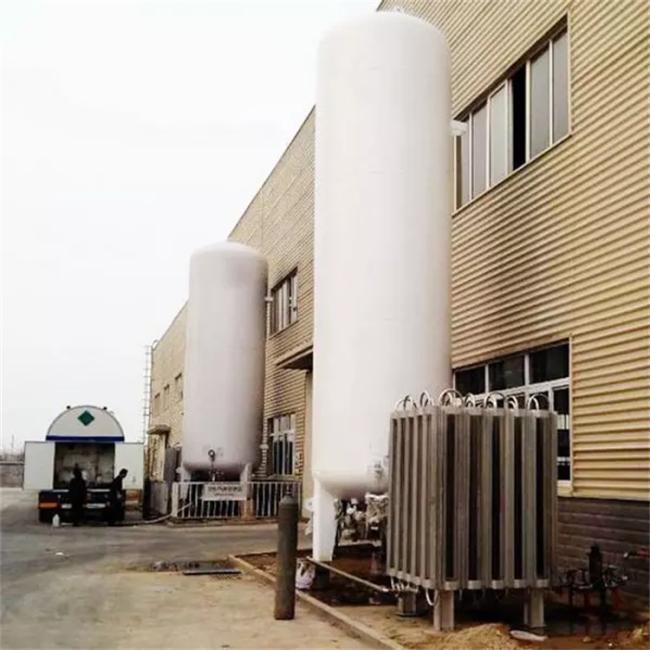

The cryogenic storage tank is made of double-layered cylindrical structure, the inner cylinder and its piping are made of stainless steel S30408, the outer casing is made of alloy steel Q245R, the interlayer is filled with expanded perlite (also known as pearl sand) and the specially treated adsorbent is set at the same time. It is pumped to a high vacuum (0.5 to 6 Pa) and has a capacity of 200 m3 or less. The working pressure is high (the working pressure of the two storage tanks in the four workshops is 2.0 Mpa), and there is a gasifier outside the tank, which can make the pressure boost in the tank easy to charge, and can directly send the pressure gas.
Parameter
| Product name | Low Temperature Liquid Cryogenic Storage Tank |
| Loading medium: LO2,LN2,LNG,LAR | Filling rate: 95% |
| Effective Volume: 30m3 | Total volume: 30.6m3 |
| Working pressure: 0.8MPa | Design pressure: 0.84MPa |
| Outer cylinder design temperature: 60℃ | Inner cylinder design temperature: -196℃ |
| Outside tank material: Q245R | Inner tank material: S30408 |
| Insulation: Vacuum powder insulation | Tare weight: About 11650KG |
1. Electrical appliances, food packaging filling gas, thermal oxidation, epitaxial diffusion, chemical vapor deposition, etc.
2. Refrigerant
3. Production of ammonia, nitric acid, calcium cyanamide, cyanide, hydrogen peroxide, etc.
4. Used in fertilizer, medicine, animal husbandry, refrigeration and electronics industries.
5. For metal smelting, chemical, mechanical processing and other industries
