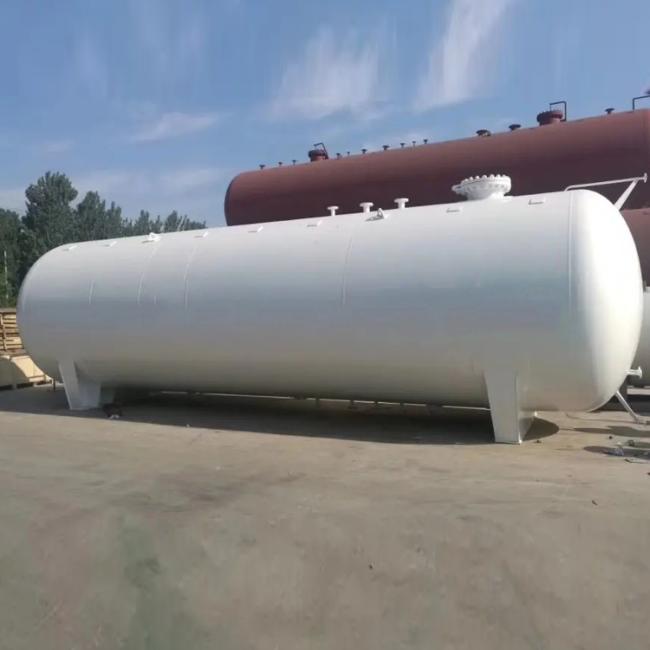

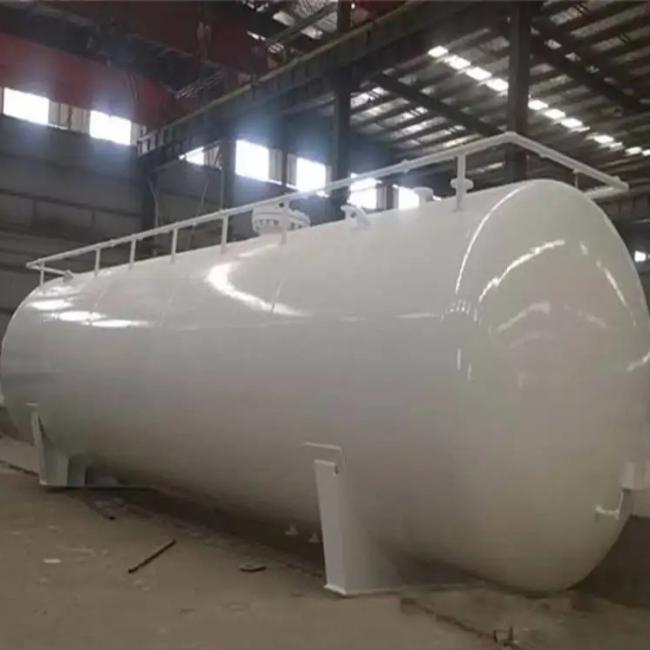

Stainless Steel 25000L LPG Gas Storage Tank 20m3 Mounded Bullet
Aboveground Customizable Capacity LPG Storage Tank
Description
LPG tanks are available in a variety of capacities and pressures. They can be customized to meet the specific needs of individual customers. Higher capacities are available on request in most cases, but capacities are usually between 7500 litres and 25000 litres.
Parameter
| Model | Volume(m3) | Specification(mm) | Materials |
| 1200-5 | 5 | 1200×3980×8/8(6.8) | Q345R |
| 1600-10 | 10 | 1600×4400×10/10(8.8) | Q345R |
| 1800-15 | 15 | 1800×5250×12/12(10.7) | Q345R |
| 2000-20 | 20 | 2000×5650×12/12(10.7) | Q345R |
| 2200-25 | 25 | 2200×5800×12/14(12.7) | Q345R |
| 2200-30 | 30 | 2200×7100×12/14(12.7) | Q345R |
| 2400-40 | 40 | 2400×8000×14/14(12.7) | Q345R |
| 2800-50 | 50 | 2800×7110×16/16(14.6) | Q345R |
| 2600-60 | 60 | 2600×10360×14/16(14) | Q345R |
| 3000-80 | 80 | 3000×10250×16/18(16) | Q345R |
| 3000-100 | 100 | 3000×13200×16/18(16) | Q345R |
| 3600-120 | 120 | 3600×10500×20/22(20) | Q345R |
| 3600-150 | 150 | 3600×13500×20/22(20) | Q345R |
| 3800-200 | 200 | 3800×16300×22/22(20) | Q345R |
Equipment composition
The basic equipment of LPG storage tank includes manhole, safety valve joint, exhaust outlet, liquid level gauge joint, liquid inlet, gas phase balance port and liquid phase outlet.
Optional equipment includes level gauge, safety valve, temperature gauge, pressure gauge, etc.
For the safe use of LPG products, we have carried out a number of tests on LPG tanks, such as welding line density test, heat treatment, water pressure measurement, radiographic nondestructive testing, etc.
Configure
1. Loading medium: LPG.
2. Effective Volume: 100m3
3. Working pressure: 1.6 MPa
4. Overall dimension: Φ3600*17250mm
5. Cylinder design temperature: -196℃
6. Shell material:Outer jacket: Q245-R;
7. Filling rate: 0.95
8.Delivery date: Within 45 days after received pre-payment,or more shorter time.
