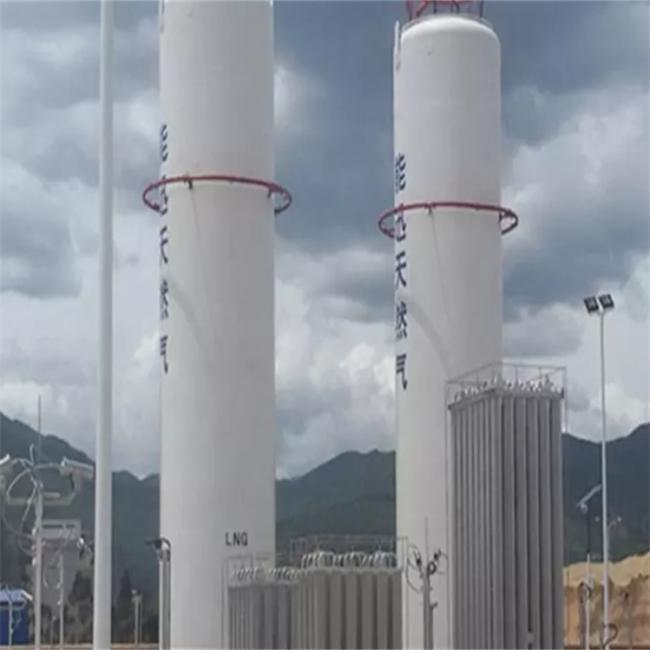

High Pressure Cryogenic Liquid Storage Tank 10m3
10m3 High Pressure Cryogenic Liquid Cryogenic Storage Tank
Description
Cryogenic liquid storage tank is a commonly used advanced long-term storage equipment for cryogenic liquids. It has the characteristics of large storage capacity, adjustable pressure, low evaporation rate, safety and reliability, etc. It is widely used in the storage of industrial gases liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, ethylene and liquefied natural gas. The storage tank adopts a double-layer cylindrical structure, which is filled with thermal insulation materials and evacuated. It is mainly composed of inner and outer pipes, thermal insulation structure, pipeline system and safety accessories.
Parameter
|
The effective volume
(m3)
|
Maximum working pressure (MPa)
|
Empty container
(kg)
|
Outline dimension
(Diameter * height)
|
|
5
|
0.2
|
3623
|
1916x5260
|
|
0.8
|
3825
|
||
|
1.6
|
5118
|
||
|
10
|
0.2
|
5790
|
2316x5970
|
|
0.8
|
6235
|
||
|
1.6
|
10710
|
||
|
2.0
|
13200
|
||
|
15
|
0.2
|
7805
|
2516x6875
|
|
0.8
|
8033
|
||
|
1.6
|
8531
|
1. Inner Material:304/316 stainless steel.
2. Outer Material:Q235b carbon steel.
3. use:: industrial, medical, civil natural gas, etc.
