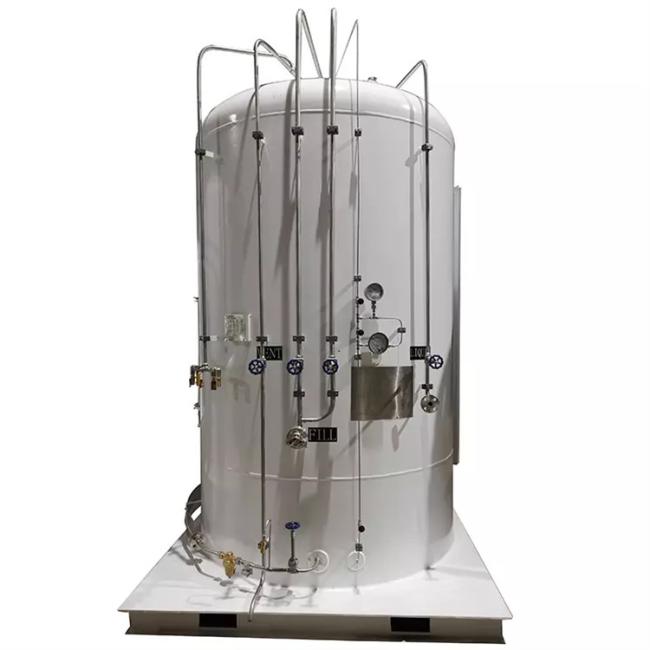

3 Cubic Meters Cryogenic Micro Bulk Tanks For Lo2 Ln2 Lar
3 Cubic Meters Cryogenic Micro Bulk Tanks for Lo2 Ln2 Lar
Oxygen filling tank is for double wall, inner layer adopts S30408 stainless steel and outer layer adopts Q245R alloy steel, vertical or horizontal structure, adopt vacuum powder insulation, with the advantage of compact structure, low daily evaporation rate, small footprint, centralized control, safe, reliable, easy operation and maintenance.
|
Model
|
Volume
(cbm)
|
Working Pressure (Mpa)
|
Empty container
(kg)
|
Type
|
The rate of evaporation (%)
|
Outline Size
(Dia * height)
mm
|
|
JSSM5-L0.8
|
5
|
0.8
|
3825
|
Vertical
|
0.29
|
1916*5260
|
|
JSSM5-W0.8
|
5
|
0.8
|
3950
|
Horizontal
|
0.29
|
1916*5260
|
|
JSSM10-L0.8
|
10
|
0.6/0.8
|
6450/6675
|
Vertical
|
0.25
|
2316*6000
|
|
JSSM10-W0.8
|
10
|
0.6/0.8
|
6450/6675
|
Horizontal
|
0.25
|
2316*6000
|
|
JSSM15-L0.8
|
15
|
0.6/0.8
|
8145/8415
|
Vertical
|
0.22
|
2516*6760
|
a.The tank body adopts high vacuum winding insulation design and auxiliary special high vacuum maintenance technology, which has good thermal insulation effect and low evaporation;
b.A small gas storage and supply module that is safe, easy to use, and makes gas (liquid) supply more widely accessible;
c.Gas purity can be reliably guaranteed, avoiding the unstable factors of Dewar purity;
d.Cryogenic liquid filling can be realized on site, which solves the downtime caused by gas supply;
e.Centralized gas supply equipment that combinationn
