Automatic PSA Oxygen Generator with 950 Nm3/h Output and 12 Months Warranty for Medical Oxygen Generation
Price:
Negotiable
MOQ:
≥1sets
Delivery Time:
Transit time: Est. 17-24 days
Brand:
GNEE
Product Description

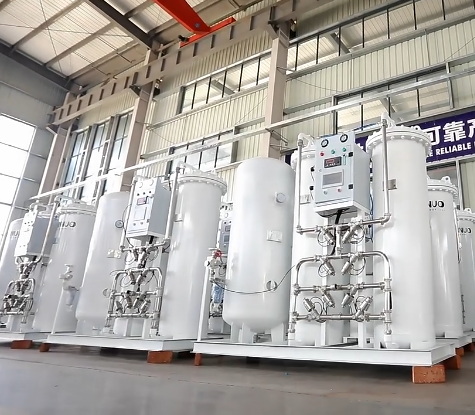

PSA Oxygen Gas Generator Manufacturers Medical Oxygen Generator Plant for Sale
Product Description
PSA stands for Pressure Swing Adsorption, a technology that separates oxygen from atmospheric air through an adsorption process.
Technology Overview
- Pressure: Operates at 4-8 bar(g), with capability for higher pressures if required
- Swing: Dual vessel system where one vessel pressurizes while the other depressurizes
- Adsorption: Oxygen is separated from air through specialized adsorption materials
Product Specifications
| Gas Production (Nm³/h) | Air Consumption (Nm³/min) | Inlet Diameter DN (mm) | Outlet Diameter DN (mm) | Dimensions L×W×H (mm) |
|---|---|---|---|---|
| 1 | 0.2 | DN15 | DN15 | 800×650×1720 |
| 2 | 0.4 | DN15 | DN15 | 950×950×1500 |
| 3 | 0.6 | DN15 | DN15 | 1050×900×1865 |
| 5 | 1 | DN20 | DN15 | 1450×900×1825 |
| 10 | 2 | DN32 | DN15 | 1450×900×1825 |
| 15 | 3 | DN40 | DN25 | 1800×950×1940 |
| 20 | 4 | DN40 | DN25 | 1850×1025×2100 |
| 25 | 5 | DN50 | DN25 | 2000×1050×2210 |
| 30 | 6 | DN50 | DN25 | 2000×1050×2530 |
| 50 | 10 | DN65 | DN25 | 2200×1250×2720 |
| 60 | 12 | DN65 | DN40 | 2250×1300×2850 |
| 80 | 16 | DN80 | DN40 | 2350×1550×3060 |
| 100 | 20 | DN100 | DN40 | 2500×1600×3330 |
| 120 | 24 | DN100 | DN40 | 2600×1700×3670 |
| 150 | 30 | DN150 | DN40 | 4700×1500×2980 |
| 180 | 36 | DN200 | DN40 | 4700×1600×3370 |
| 200 | 40 | DN200 | DN40 | 5000×1600×3330 |
| 240 | 48 | DN200 | DN50 | 5200×1700×3670 |
System Components
- Air Compressor (Screw type): Collects and compresses air to 8 bar
- Refrigerated Dryer: Removes moisture (standard dew point -20°C, options available to -60°C)
- Precision Filter: Three-stage filtration (A/T/C) to remove oil, dust and impurities
- Air Buffer Tank: Stores purified air for adsorption process
- Adsorption Tower: Dual towers with sodium molecular sieve for oxygen separation
- Nitrogen Analyzer: Real-time purity monitoring with alarm system
- Valves & Pipelines: Intelligent control valves with PLC and SUS304 piping
- Nitrogen Buffer Tank: Stores purified nitrogen for direct use or filling
- Nitrogen Booster: Pressurizes nitrogen to filling pressure (150-200 bar)
- Filling Manifold: Distributes high-pressure nitrogen to cylinders
Packaging Details
| Size | 1230×4560×7890 mm |
| Weight | 1.2 Tons |
| Packaging Method | Standard wooden box (fumigated for European exports). Alternative packaging available for special requirements. |
We also manufacture VPSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA systems or other products, please contact us at info@gneeheatex.com.
