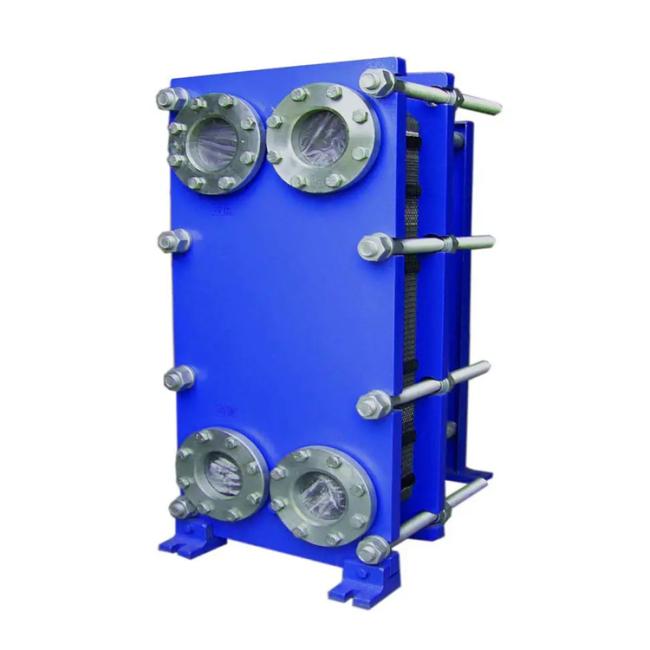

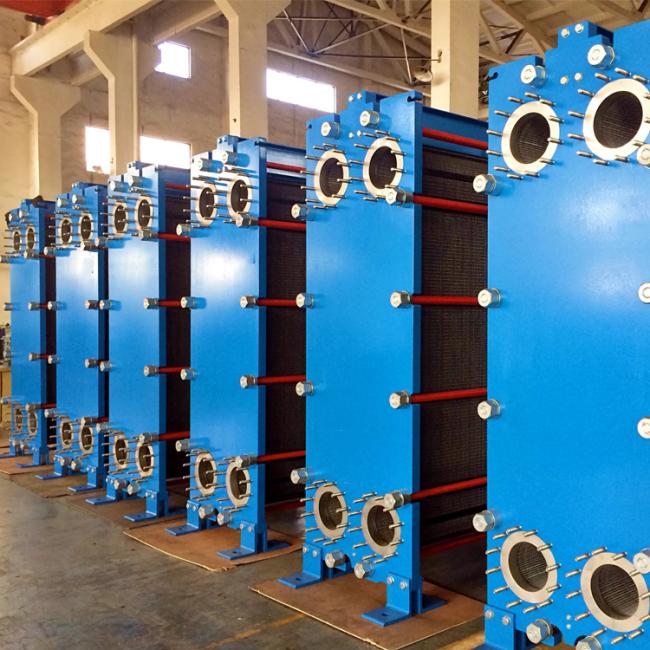

10 Bar 16 Bar Gasketed Heat Exchanger Carbon Steel Brazed Plate Condenser
Gasket Plate Frame Heat Exchanger
Description
The plate heat exchanger is the most typical partition heat exchanger, which has a long history of industrial application and still dominates all heat exchangers. The main structure consists of heat exchange plates and rubber strips between the plates.
Parameter
| NO. | ITEM | CONTENT DESCRIPTION |
| 1 | Base Material | Aluminum alloy, AA3003 is commonly used |
| 2 | Tube Material | Red copper T2 or Stainless steel |
| 3 | Production Technique | CNC machining and Epoxy gluing |
| 4 | Outer Dimension Limit | Max. 4000*4000*1000mm L*W*H |
| 5 | Tube Size | Diameter 4/6/8/10/12/16/20 mm |
| 6 | Tube wall thickness | 1/1.2/1.5 mm |
| 7 | Surface Roughness | Standard 1.2um or custom |
| 8 | Surface Flatness | Standard 0.005cm per cm length or custom |
| 9 | Working Pressure | Normal 1.2 to 5 bars |
| 10 | Surface finish | Mill finish, anodization, painting or custom |
| 11 | Packing way | Normal plywood case packing way |
Basic Structure
⒈ Plate heat exchanger plates and plate heat exchanger gaskets
⒉Fixed pressing plate
⒊ Movable pressing plate
⒋Clamping bolt
⒌Upper guide rod
⒍ Lower guide rod
⒎ Rear column
FAQ
Q:Can I have samples?
A: Yes, you are welcome to place sample orders to test and check the quality. Mixed samples are also available.
Q: What is your lead time for production
A: It usually takes 1-3 days for samples and 15-30 days for mass production, depending on your requirements.
Q: 3. Can you accept mixed batches of different products?
A: Yes, we can offer different product combinations wholesale.
Q: 5. What is the warranty period for your product?
A: We offer a one-year warranty.
Are you a trading company or a manufacturer?
A: Yes, we are manufacturers. Welcome to visit our factory and inspect our products.
