50m3 LIN Cryogenic Storage Tank 0.8mpa Impact Resistance

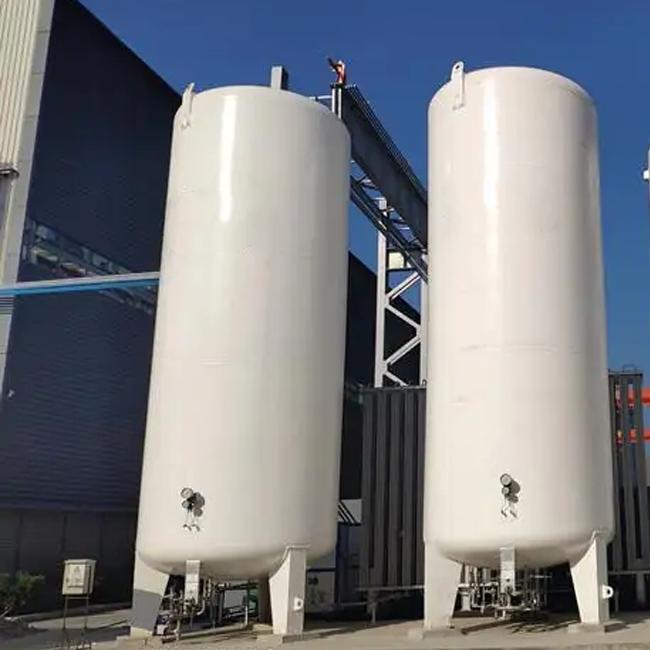

50m3 Cryogenic Liquid Nitrogen Storage Tank
Description
Due to its unique rotomolding process, overall product structure and excellent material properties, the cryogenic liquid nitrogen storage tank has good integrity, high strength, no welds, no leakage, impact resistance, good toughness, light weight, and meets hygienic standards. Low price, variety of specifications and so on. In particular, the service life can exceed 15 years. It is an ideal product for storing and transporting various chemical liquids and semi-solids.
Parameter
|
The effective volume (m3) |
Maximum working pressure (MPa) |
Empty container (kg) |
Outline dimension (Diameter * height) |
5 |
0.2 | 3623 | 1916x5260 |
| 0.8 | 3825 | ||
| 1.6 | 5118 | ||
10 |
0.2 | 5790 | 2316x5970 |
| 0.8 | 6235 | ||
| 1.6 | 10710 | ||
| 2.0 | 13200 | ||
| 30 | 0.2 | 13527 | 2720x10230 |
| 0.8 | 15100 | ||
| 1.6 | 18110 | ||
| 50 | 0.2 | 18650 | 3020x12670 |
| 0.8 | 21565 | ||
| 1.6 | 26740 | ||
| 100 | 0.2 | 36570 | 3524x17040 |
| 0.8 | 44595 | ||
| 1.6 | 53550 | ||
| 200 | 0.2 | 76838 | 4724x19192 |
| 0.8 | 92143 | ||
| 1.6 | 108440 |
product manual
Structure: vertical or horizontal double-layer vacuum insulation structure.
Volume: The factory has a low-temperature liquid nitrogen storage tank with a volume of 2-150M3, and the capacity can also be customized according to demand.
Applicable medium: LOX LIN LAr LNG LCO2 LC2H2.
The product design concept is advanced, and the operating system configuration of pipelines, valves, meters and other operating systems is scientific and reasonable, and the operation is more convenient and the use is safer.
All main materials come from large iron and steel enterprises, and the physical and chemical indicators and mechanical properties are re-examined when the materials are in the factory.
Under the framework of the quality assurance system, the products are processed in strict accordance with the regulations of the production process.
Adopt the fully sealed sand filling method, negative pressure suction and positive pressure compaction, and the whole process is supplemented by heating and vibration to completely avoid the fullness of pearlescent sand.
Using international brand evacuating units to obtain higher vacuum degree, and setting molecular sieve adsorption device in the interlayer to keep the vacuum longer.
The surface treatment of the tank body is carried out by sandblasting, and the thickness of the paint film is greater than 125mm, so that the tank body has a good anti-corrosion ability and remains beautiful and new for a long time.
