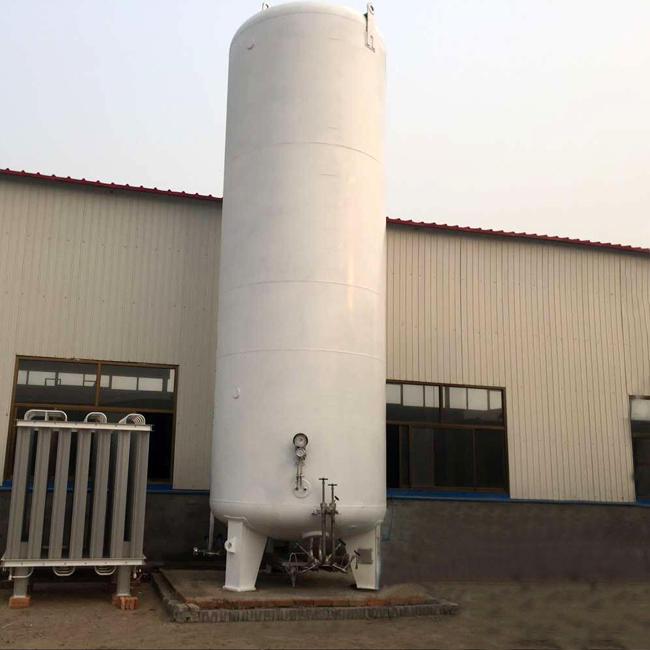

0.8MPa 25m3 Cryogenic Storage Tank 2.16MPa Large Liquid Nitrogen Thermal Insulation
High Efficiency 2.16MPa Cryogenic 25m3 Liquid Nitrogen Storage Tank
Description
The cryogenic liquid nitrogen storage tank is used to store pressurized liquefied nitrogen, which can better store the gas at low temperature and ensure a low evaporation rate. The storage tank adopts a double-layer vertical structure, with a solid thermal insulation layer between the two layers, and the pearl sand is filled in the middle to ensure the thermal insulation vacuum degree.
Parameter
| Model |
Water volume (m³) |
Working pressure (Mpa) |
Equipment weight (Kg) |
Maximum total mass (Kg) |
Filling medium |
Standard specification |
| 20FT-8 | 19.2/20.2 | 0.8 | 8900 | 34000 |
liquid nitrogen |
IMDG,EN,ASME,ADR/RID,
DOT,TC,ISO1496-3 |
| 20FT-16 | 19.2/20.2 | 1.6 | 9650 | 34000 | ||
| 20FT-22 | 19.2/20.2 | 2.2 | 10270 | 34000 | ||
| 40FT-9 | 44/45.2 | 0.9 | 12000 | 36000 |
Liquefied natural gas, liquefied ethylene |
IMDG,EN,ASME,ADR/RID, DOT,TC,ISO1496-3 |
| 40FT-12 | 41.5/42.5 | 1.15 | 15000 | 34000 |
Precautions
The cryogenic liquid nitrogen storage tank is a device used for transportation and storage. In order to ensure the safety of the storage tank and the surrounding environment, we need to take precautions to avoid danger.
Feature
The cryogenic liquid nitrogen storage tank meets the requirements of industry standards and is suitable for major chemical and food industries. The storage tank has a built-in temperature measuring device, which can detect the liquid state and temperature inside the storage tank in real time. The advanced design structure and manufacturing process are adopted in the production process of the storage tank, so that the cryogenic liquid nitrogen can be stored for a longer time without evaporating.
