Cryogenic Micro Bulk Liquid Nitrogen 3m3 Oxygen 2000L
2000L Micro Bulk Cryogenic Pressure Vessel Liquid Oxygen Storage Tank
Description

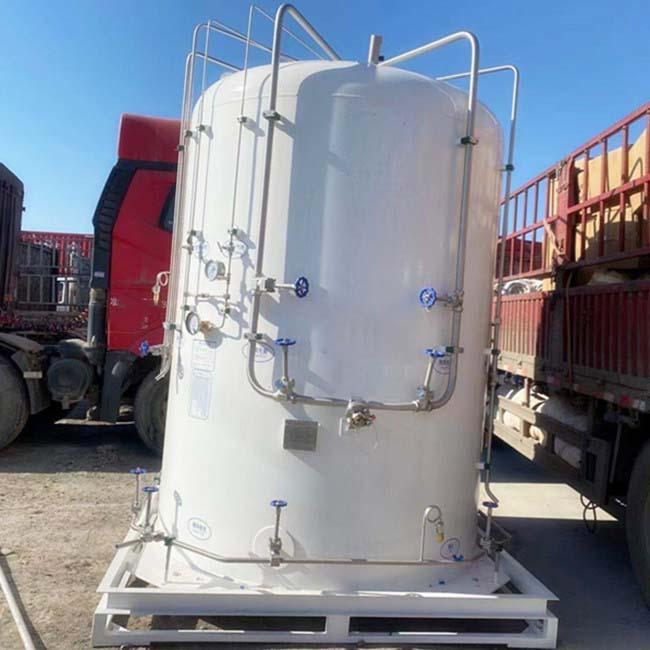

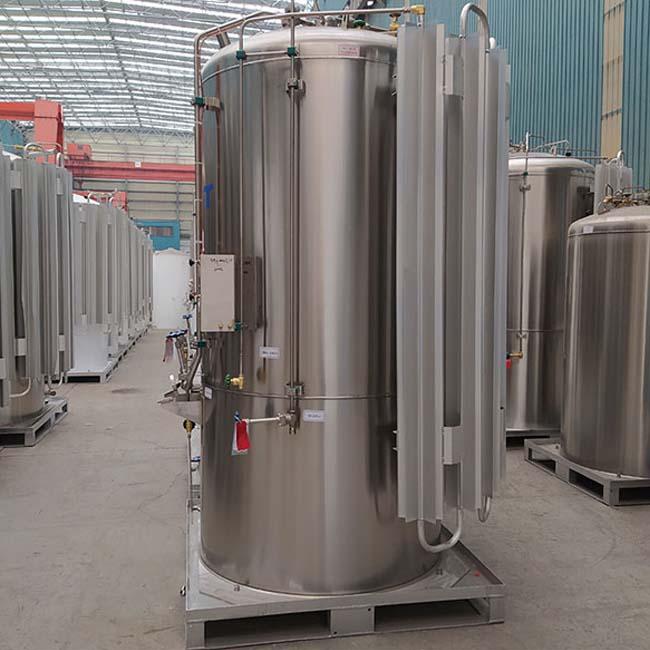

The micro bulk cryogenic storage tank has its own integrated control system, adopts the structure of fixed base and double-layer vacuum insulation, and is equipped with cryogenic liquid filling and automatic pressurization system. It is a small centralized control of gas pressure equipment. It can conveniently store and fill liquid gas media such as liquid oxygen, liquid nitrogen, liquid argon, etc.
Parameter
| volume(m3) |
working pressure (MPa) |
working medium | dimension(mm) |
net weigh (kg) |
| 1m3 | 1.6 | LO2,LN2,LAr,LNG | 1300*1300*2326 | 720 |
| 2.5 | LO2,LN2,LAr,CO2 | 1300*1300*2326 | 720 | |
| 3.4 | LO2,LN2,LAr | 1300*1300*2326 | 1096 | |
| 2m3 | 1.6 | LO2,LN2,LAr,LNG | 1750*1750*2741 | 1440 |
| 2.5 | LO2,LN2,LAr,CO2 | 1750*1750*2741 | 1560 | |
| 3.4 | LO2,LN2,LAr | 1600*1600*2390 | 1780 | |
| 3m3 | 1.6 | LO2,LN2,LAr,LNG | 1850*1850*2869 | 1814 |
| 2.5 | LO2,LN2,LAr,CO2 | 1850*1850*2869 | 1990 | |
| 3.4 | LO2,LN2,LAr | 1850*1850*2869 | 2408 | |
| 5m3 | 0.8 | LNG | 2300*2300*3160 | 2426 |
| 1.6 | LO2,LN2,LAr,LNG | 2150*2150*3095 | 2757 | |
| 2.5 | LO2,LN2,LAr,CO2 | 2150*2150*3095 | 3102 | |
| 3.4 | LO2,LN2,LAr | 2150*2150*3095 | 3483 | |
| 7.5m3 | 1.6 | LO2,LN2,LAr,LNG | 2350*2350*3210 | 4326 |
Features
1. The micro bulk low temperature tank adopts high vacuum winding insulation design and assisted by special high vacuum technology to maintain, the overall thermal insulation effect is good, and the daily evaporation is small.
2. The storage tank is safe and easy to use as a whole, which can make the supply of liquid gas more smooth.
3. The gas purity of the storage tank can be reliably guaranteed, avoiding the instability of the purity of the small gas cylinder.
4. The storage tank can be filled with low-temperature liquid on site, which solves the shutdown caused by insufficient gas supply.
5. Micro bulk cryogenic tanks are composed of small storage tanks and superchargers. A centralized gas supply device composed of a vaporizer and a pipeline system.
