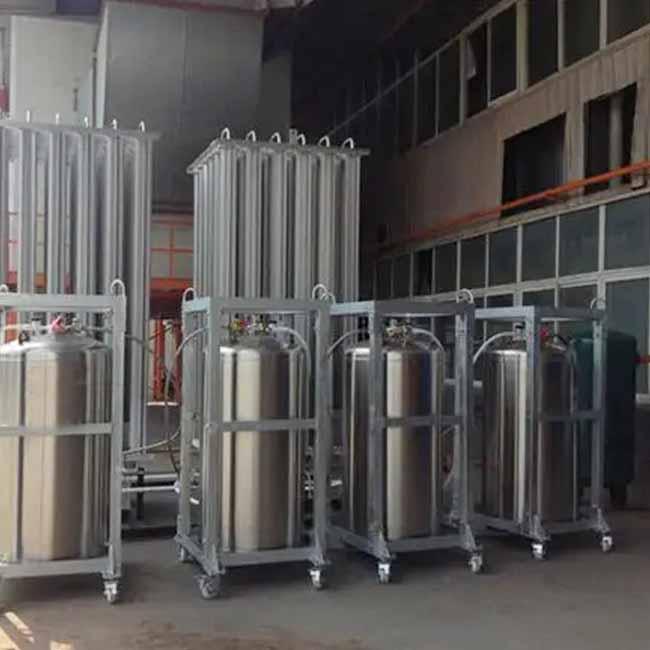

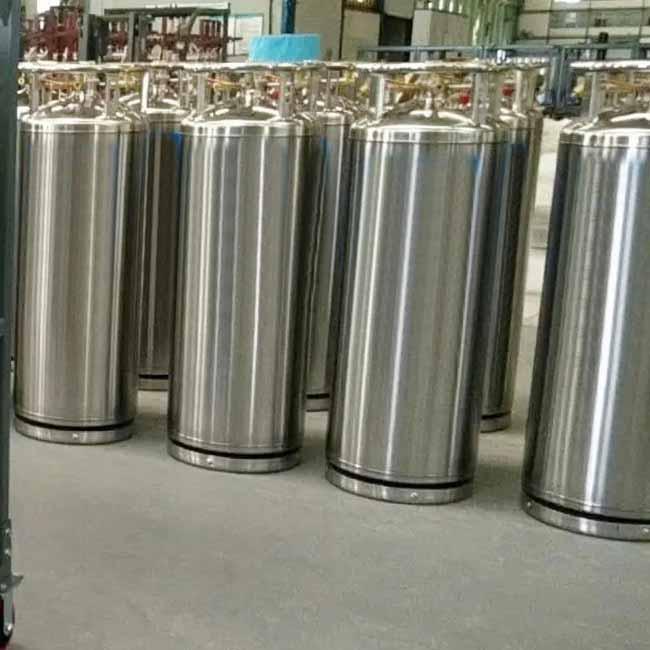

LNG 175 Liter Cryogenic Dewar Cylinder 1.4MPa Liquid Nitrogen Tank Pressure Building
175 L LNG Cryogenic Gas Cylinder Liquid Nitrogen Cylinder Dewar
Description
The self-pressurization speed of the cryogenic dewar is faster, and the high-pressure supply can achieve continuous stability. Using a new internal and external synchronous heating technology, intelligent vacuuming. The Dewar bottle adopts a unique filling design, the flash steam is greatly reduced, and the filling and emptying loss and filling rate are greatly improved.
Specifications
| Specifications | Product model | |
| 450-175-1.4 | 450-175-2.0 | |
| volume(L) | 175 | 175 |
| Effective volume(L) | 157.5 | 157.5 |
| Size(D×H)mm | Φ508×1496 | Φ508×1500 |
| Working Pressure(MPa) | 1.4 | 2.0 |
| Set pressure of main safety value(MPa) | 1.59 | 2.41 |
| Set pressure of bursting discset(MPa) | 2.6 | 3.6 |
| Evaporation rate (Liquid nitrogen) | ≤2.1% | ≤2.1% |
| Empty weight(kg) | 117 | 135 |
| Maximum filling weight:Liquid oxygen(kg) | 179 | 179 |
| Maximum filling weight:Liquid nitrogen(kg) | 127 | 127 |
| Maximum filling weight:Liquid argon(kg) | 220 | 220 |
| Maximum filling weight:LNG(kg) | 67 | --- |
| Level gauge | Float type,Capacitance | |
| The base style | Stainless steel-rubber bas | |
Features:
1 For liquid argon/liquid oxygen/liquid nitrogen/liquid carbon dioxide /LNG storage and transportation.
2 Built-in gasifier, providing 10m3/h continuous gas supply.
3 adopt international standard joint, all valves are imported brands. Also can be customized according to customer.
Damping ring design to ensure transportation safety.
Widely used in chemical/machinery/shipbuilding/hospital/electronics/medical/materials/energy/scientific research and other industries.
