1.4mpa Cryogenic Dewar Cylinder 195L Liquid Nitrogen Self Pressurization

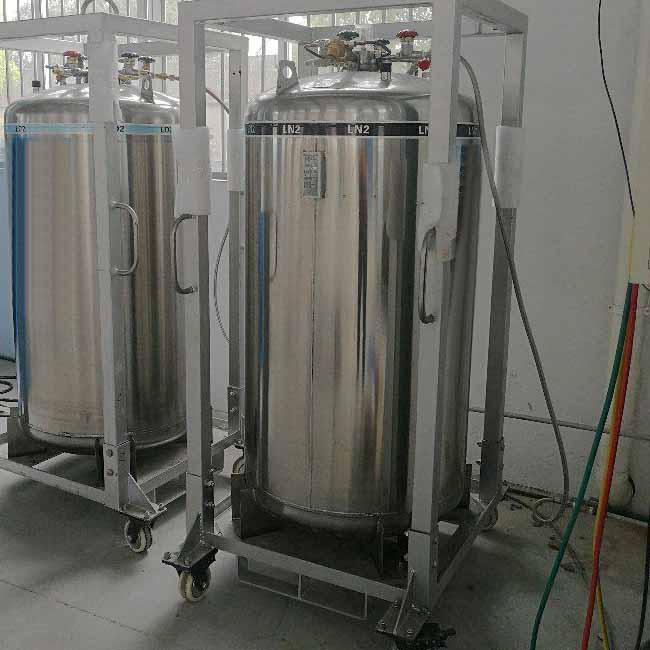

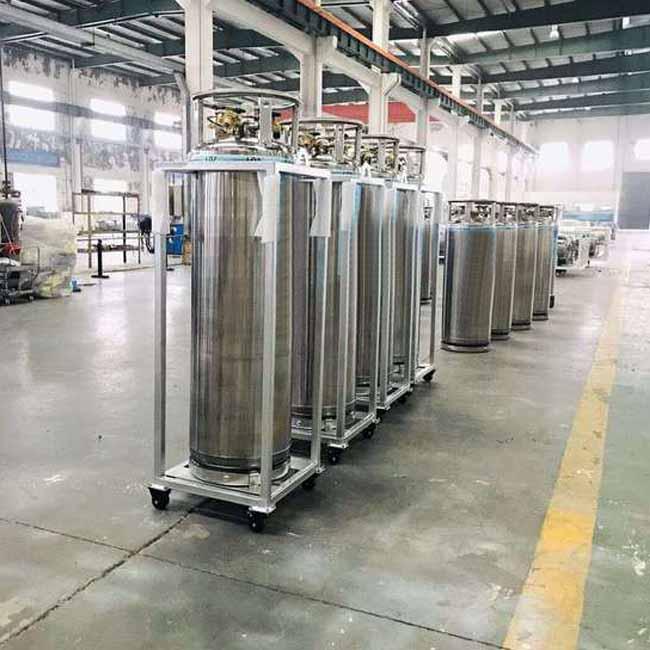

195L Capacity Self-Pressurization Cryogenic Liquid Nitrogen Dewar Cylinder
Description
The 195L Capacity Self-Pressurization Cryogenic Liquid Nitrogen Dewar Cylinder is an ideal container and tool for storing liquid gas, cryogenic research and crystal element protection. The company's glass dewars have been widely used in scientific research, medical and health care, oil drilling and other related fields due to their good thermal insulation performance.
Specification
| Product Specification | ||||||||
| Product Model | DPL-100 | DPL-175 | DPL-195 | DPL-210 | DPL-410 | DPL-450 | ||
| Diameter*Height(mm) | 454*1247 | 508*1500 | 508*1620 | 508*1707 | 750*850*1770 | 750*850*1900 | ||
| Working Pressure(MPa) | 1.33 |
1.4 2.01 2.88 |
1.4 2.01 2.88 |
1.4 2.01 2.88 |
1.4 3.17 |
1.4 3.17 |
||
| Pressure Relief Valve(MPa) | 1.59 |
1.59 2.41 3.45 |
1.59 2.41 3.45 |
1.59 2.41 3.45 |
1.59 3.45 |
1.59 3.45 |
||
| Inner Container Bursting Disc(MPa) | 2.60 |
2.60 3.62 5.17 |
2.60 3.62 5.17 |
2.60 3.62 5.17 |
2.60 5.70 |
2.60 5.7 |
||
| Maximum Liquid Capacity(L) | 100 | 175 | 195 | 210 | 410 | 450 | ||
| Usable Liquid Capacity(L) | 95 | 166 | 185 | 197 | 389 | 427 | ||
| Normal Evaporation Rate ((LN2)) | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤1.8% | ≤1.8% | ||
| Tare Weight(Kg) | 70 | 110 | 117 | 123 | 282 | 289 | ||
|
The Filling Quality |
Oxygen(kg) | 100 | 172 | 191 | 205 | 443 | 487 | |
| Nitrogen(Kg) | 73 | 121 | 135 | 145 | 315 | 346 | ||
| Argon(Kg) | 127 | 208 | 233 | 250 | 548 | 602 | ||
| Natural Gas (Kg) | ---- | 70.1 | 76 | 86.3 | 161 | 176 | ||
| CO2(Kg) High Pressure only | ---- | 138 | 154 | 164 | 325 | 357 | ||
| N2O(Kg) High Pressure only | ---- | 191 | 213 | 227 | 448 | 492 | ||
Features
* 195L Capacity Self-Pressurization Cryogenic Liquid Nitrogen Dewar Cylinders are mainly used for storage and transportation of liquid oxygen, liquid nitrogen, liquid argon and liquefied natural gas
* High multi-layer insulation to ensure low evaporation rate.
* internal evaporator provides 10Nm3/h stable continuous gas.
* Priority of solar devices used in gas pressure and gas space.
* Unique damping ring design to meet the needs of frequent transport.
* Suitable for welding, LNG supply industry, etc.
