10m3 Auto LP Gas Filling Station Q345R 220 Volts Skid Mounted

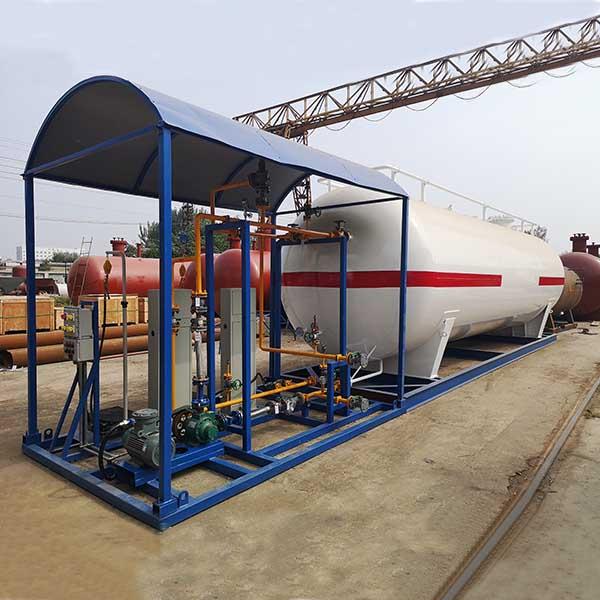

10m3 Mobile Skid Mounted LPG Filling Gas Station
Description
10m3 Mobile Skid Mounted LPG Filling Gas Stations are developing in the direction of integration, speed and flexibility. Can better meet the needs of market development. The LPG skid-mounted station completes the assembly, pressing, flaw detection and debugging in the factory in accordance with the specifications and design requirements of the bottle group and gasification and pressure regulation equipment. It is guaranteed that the equipment has the function of gas supply from the factory. It can quickly provide safe and stable gas supply equipment in areas where installation and construction are inconvenient.
Parameter
| 10m3 Mobile Skid Mounted LPG Filling Gas Station | |
| Volume of Tank | 10CBM(customized) |
| Filling Weight | 3990 kg |
| Tank Weight | 2950 kg |
| Thickness of Shell (mm) | 10 mm |
| Thickness of Endplate (mm) | 10 mm |
| Tank Diameter (mm) | 1600 mm |
| Tank Dimensions (mm) (length x width x height) | 5260 x 1620 x 2210 mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.77 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 500 kg/ M3 |
Advantage
1. The 10m3 Mobile Skid Mounted LPG Filling Gas Station is an integrated, movable and convenient gas filling station that integrates storage tanks and various accessories. It can be conveniently filled with liquefied petroleum gas and saves the actual floor space.
2. The LPG skid-mounted station can clearly record the filling data. It is necessary to communicate with us to install accessories such as a receipt printer.
3. The 10m3 Mobile Skid Mounted LPG Filling Gas Station is a mobile gas station that can maximize benefits. It is easy to install and maintain, and can be operated by customers after a short training.
FAQ
1.Could your company modify the standard product depends on my request?
Yes.We can provide any product according to your demand.
2. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
3. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
4. How about the after-sale service?
We can provide you the technical support to guide you repaire your product.
