2000 Liter LPG Skid Station

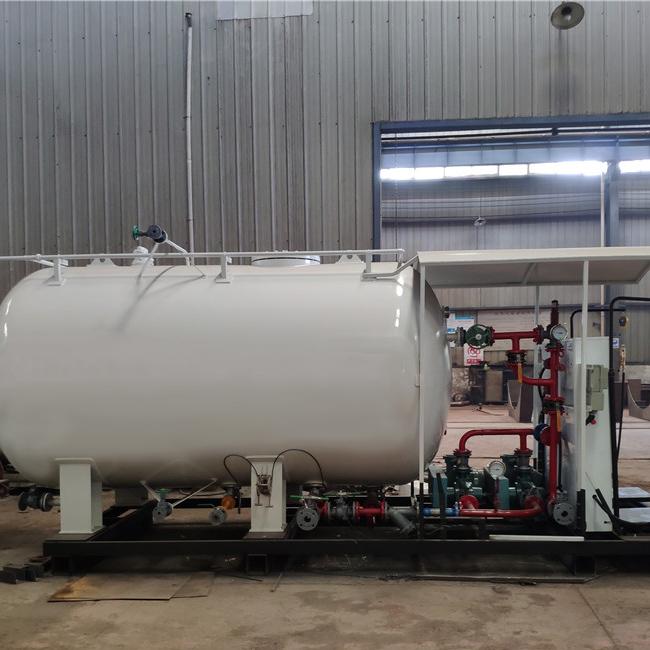

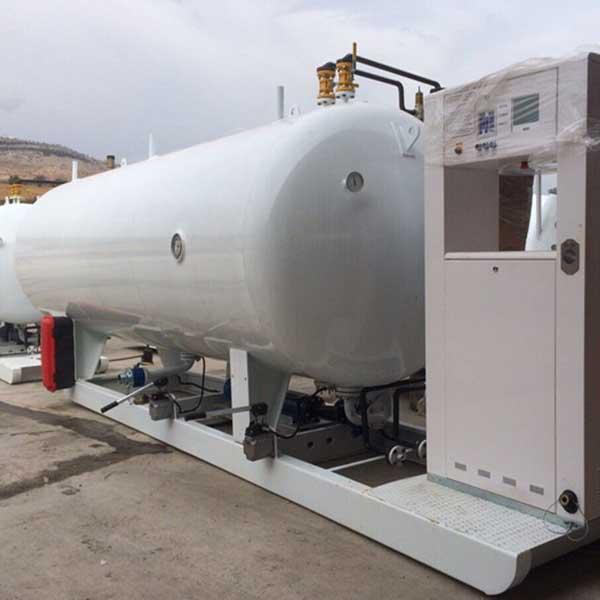

2000L LPG Gas Skid Mounted Filling Station With LPG Pump And Dispenser
Description
The LPG skid is divided into storage tanks. skid mounted. The distributor and the control terminal are integrated to form the LPG filling station, which can easily fill the gas and bring convenience to the region. The distribution pipeline of the skid adopts a double pipeline structure, which can ensure that the whole LPG skid can operate normally when a group of pipelines are damaged during routine maintenance or accident, so as to avoid losses to customers.
Specifications
| TAKN VOLUME(m³) | 10m³ | 12m³ | 20m³ | 25m³ | 32m³ | 40m³ | 50m³ | 63m³ |
| Filling Weight (kg) | 4035 | 4850 | 8070 | 10090 | 12920 | 16410 | 20180 | 25420 |
| Design Pressure (Mpa) | 1.61 | |||||||
| MAWP(Mpa) | 1.77 | |||||||
| Design Temperature (℃) | -20℃-50 ℃ | |||||||
| Shell /Head Thickness (mm) | 10mm/10mm | 10mm/10mm | 12mm/13mm | 12mm/13mm | 12mm/13mm | 13mm/14mm | 13mm/14mm |
13mm/ 14mm |
| Design Standard | Chinese Standard | |||||||
| Tank Material | Q345R | |||||||
| Processing pipe material | 20# | |||||||
| Application | 1. Scale for bottling cylinder 2. LPG dispenser for fueling car 3. LPG pump or compressor for truck |
|||||||
| Accessories | Including pressure gauge, thermometer, float level gauge, ball valves, safety valves, safety return valves, check valves, filter, globe valves, processing pipes, explosion-proof light, alarm and gas leakage detection system, explosion-proof cabinet for lighting and power distribution etc. | |||||||
| Shipment method | Volume above 20m³ will be shipped by bulk vessel , below 20m³ will be shipped by container vessel | |||||||
Advantage
LPG skid is one of the most important equipment in the gas supply process. It can conveniently integrate functions such as storage and filling and distribution. It can also be made into a removable LPG skid, saving customers’ installation and movement. time and energy.
