100cbm 1.6 bar Liquefied Petroleum Gas Tank 1.77mpa LPG Bulk
Big Capacity LPG Storage Tank 100cbm Liquefied Petroleum Gas Pressure Vessel
Description

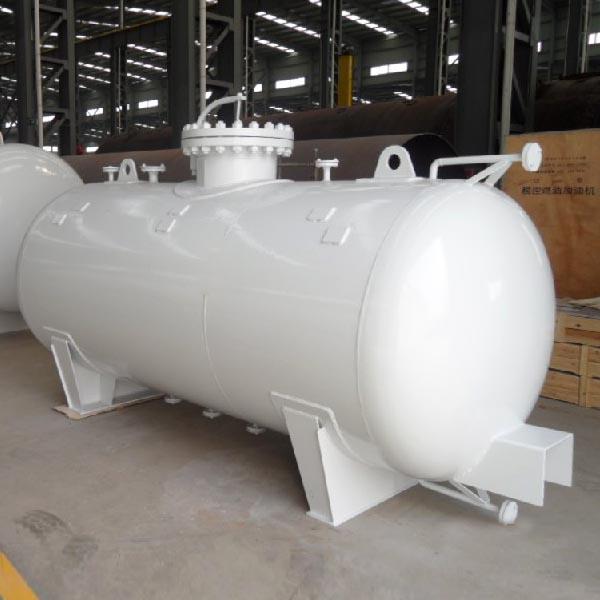

The lpg storage tank is a pressure vessel for filling and storing liquefied petroleum gas with a saturated vapor pressure of less than 1.77 Mpa at 50°C. It is very convenient for factories to store and transport LPG, we support LPG Tank from 5M3 to 200M3, the color and LOGO can be customized by customers.
Parameter
| Item | Effective volume(m3) | Working pressure(mpa) | Working medium | Size(mm) | Weight(kg) |
| LPG5/1.77 | 5 | 1.77 | Lpg | 1620×2400X5300 | ~2800 |
| LPG10/1.77 | 10 | 1824×2600X6300 | ~4250 | ||
| LPG15/1.77 | 15 | 2224×3000X7100 | ~5850 | ||
| LPG20/1.77 | 20 | 2224×3000X8400 | ~6800 | ||
| LPG30/1.77 | 30 | 2628×3400X9000 | ~9770 | ||
| LPG50/1.77 | 50 | 2628X3400×10000 | ~10800 | ||
| LPG100/1.77 | 100 | 3132x3722x13866 | ~20410 |
Introduction
1. Types: storage tank, air storage tank, liquid storage tank, vertical storage tank, horizontal storage tank, spherical tank, carbon steel storage tank,low-alloy steel storage tank, stainless steel storage tank and so on.
2. Medium: not only non-flammable,non-toxic and non-corrosive medium but also flammable,toxic,corrosive medium and highly flammable,highly toxic, highly corrosive medium.
3. Applicable Industries: petrochemical, coal chemical, precision chemical, nuclear power, metallurgical, pharmaceutical, machinery, food, pesticide, rubber, aerospace, marine, dye, new power equipment and so on.
4. Our advantages: reliable quality,codial service and great price. The leading manufacturer of storage tank/vessel
FAQ
1. What information needed if we sent you the inquiry of the tanks?
The capacity, working pressure and the working medium is most important, and then your special request is also very important.
If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.
2. How can you guarantee your tanks quality?
For lpg tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.
