100m3 198 Degree LPG Gas Storage Tank Bullet 14bar
Used Widely 100m3 Large Capacity Gas Storage LPG Tank For Sale
Description

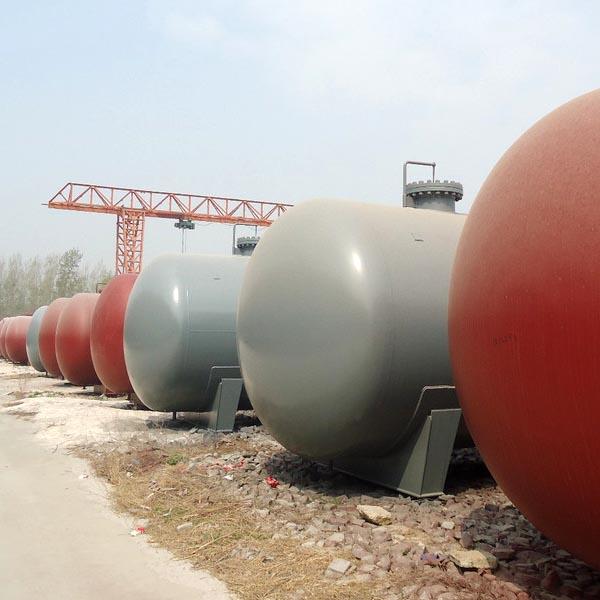

LPG storage tanks are used to store pressure vessels with LPG (propane) as the main component medium. The LPG storage tank volume is not too limited, but preferably not more than 100,0m3. LPG storage tanks are made of carbon steel, which is of better quality than ordinary single-layer storage tanks, and is more durable and less expensive to transport.
Parameter
| Model | Internal diameter (m) | Effective length(m | Max working temperature (°C) | Max working pressure(Mpa | Designed pressure(Mpa) | Designed temperature(°C) | Working medium | Weight |
| 1.0-1.65×21 | 1.65 | 21 | 184 | 1 | 1.1 | 187 | Saturation steam | 21.5 |
| 1.3-2×21 | 2 | 21 | 194 | 1.3 | 1.4 | 196 | 24.7 | |
| 1.3-2×27 | 2 | 27 | 194 | 1.3 | 1.4 | 198 | 30.5 | |
| 1.3-2×31 | 2 | 31 | 194 | 1.3 | 1.4 | 198 | 33.4 | |
| 1.3-2.5×27 | 2.5 | 27 | 194 | 1.3 | 1.4 | 198 | / | |
| 1.3-2×31 | 2.5 | 31 | 194 | 1.3 | 1.4 | 198 | / |
Feature
The design pressure of the LPG storage tank is not less than 1.77Mpa. The overall storage tank has a compact structure and is easy to operate during installation and maintenance. The volume of the storage tank can be customized according to the individual needs of customers, or the existing volume can be selected. These are all optional. The LPG storage tanks we produce are all welded seam inspected and pass various production standard requirements.
Precautions
Before using the LPG storage tank, make sure that the parts on the storage tank have been installed, and ensure that the storage tank is horizontally supported and fixed as required. Make sure that the protection device of the LPG storage tank is installed in place, and regularly check the pipeline interface of the storage tank. Promptly replace corroded or damaged parts.
