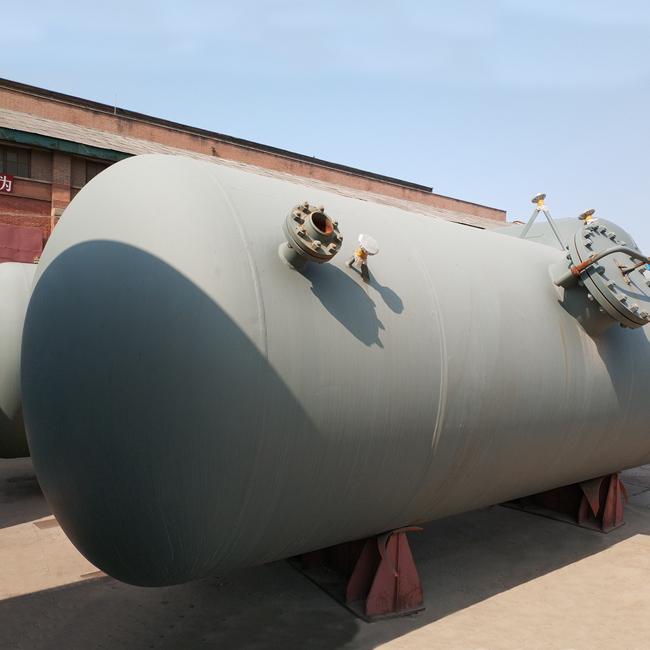

Carbon Steel Cryogenic LPG Storage Tank
Corrosion Resistant Wholesale Carbon Steel Pressure Vessel LPG gas Storage Tank
Description
Corrosion Resistant Wholesale Carbon Steel Pressure Vessel LPG gas Storage Tanks can be used as storage equipment for liquefied petroleum gas filling stations, as well as pressure vessels for storing and transporting industrial fuels, etc. Because of the instability of LPG, the quality of storage tanks is particularly important. After years of production experience, our company has an automated production line that can produce LPG storage tanks with high quality.
Parameter
| LPG Gas Tank Type | III | |
| Capacity of LPG Tank | cbm | 5 LPG TANK |
| Orientation of LPG Tank | Horizontal Single Layer LPG TANK | |
| Working Pressure | MPa | 1.63 |
| Design Pressure | MPa | 1.77 |
| Max.allowance working pressure | MPa | 1.82 |
| Working Temperature | ℃ | -19~50 |
| Design Temperature | ℃ | -20/54 |
| Medium of LPG Tank | LPG (Propane) | |
| Density of Medium | kg/m3 | 560 |
| Main Material | Q345R | |
| Filling Coefficient | 0.9 | |
| Setting Pressure of Safety Valve | MPa | 1.82 |
| Design Life | 20 Years | |
| Heat Treatment | Post-weld heat treatment for LPG Tank | |
| Hydrostatic test pressure | MPa | 2.28 |
| Air tightness test pressure | MPa | 1.77 |
| Design, Manufacturing and Inspection Standard | GB150/ASME for LPG TANK |
Features
The volume of the Corrosion Resistant Wholesale Carbon Steel Pressure Vessel LPG gas Storage Tank can be selected from 5m3 to 200m3, and the volume of the storage tank can also be customized according to the specific needs of customers. The optional equipment of LPG storage tank includes level gauge/safety valve/temperature gauge and pressure gauge, etc. LPG storage tanks undergo a number of standard tests before leaving the factory, including weld line density testing, heat treatment/hydraulic measurement, and radiographic non-destructive testing.
