50m3 Oil Well Commercial Oil Storage Tanks 30 Cubic Meter 20cbm
50m3 Double Layer Horizontal Underground Fuel Oil Storage Tank
Description

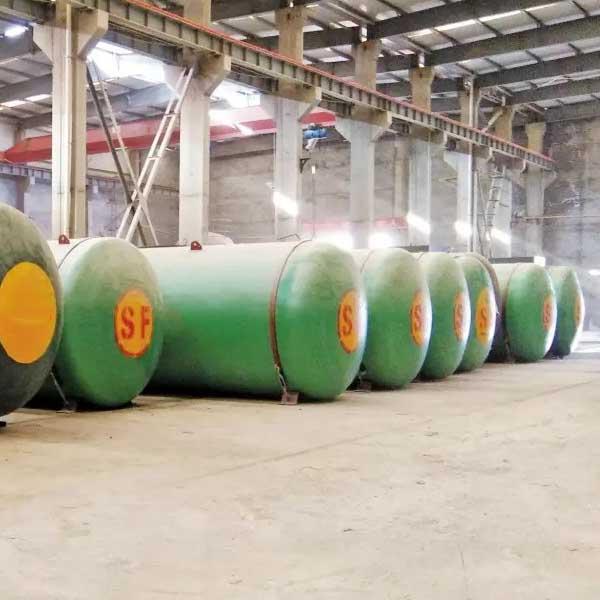

50m3 Double Layer Horizontal Underground Fuel Oil Storage Tank is a double-layer anti-leakage and anti-corrosion structure. The inner tank is made of steel material that is not easily corroded by fuel oil, and the outer layer is made of corrosion-resistant glass fiber reinforced plastic material, which can effectively prevent the external corrosion of the storage tank. To ensure the long-term use of the storage tank.
Parameter
| Capacity (M3) | 20 | 30 | 40 | 50 | 60 | 70 |
| internal diameter(mm) | 2200 | 2400 | 2600 | 2800 | 2800 | 2800 |
| Tank of the length (mm) | 4500 | 5820 | 6700 | 7200 | 8800 | 10400 |
| Gap between two layer(mm) | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 |
| Inner steel tank thickness(mm) | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
| Head thickness (mm) | ≥8 | ≥8 | ≥8 | ≥8 | ≥8 | ≥8 |
| External tank thickness(mm) | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 |
| Manhole quantity | 2 | 2 | 2 | 2 | 2 | 2 |
| Manhole diameter(mm) | 600 | 600 | 600 | 600 | 600 |
Feature
1. The service life of 50m3 Double Layer Horizontal Underground Fuel Oil Storage Tank is 5-10 times that of ordinary oil tank, and it can guarantee safe use for at least 30 years. It is easy to install, greatly shortens the construction period, reduces cost investment, and the remote monitoring system is convenient for daily and regular inspection. Digital control , eliminating the need for manual complex operation, and the protection requirement is 1/10 of the ordinary oil tank, which greatly saves the maintenance input cost.
2. The utilization rate of the S/F double-layer oil tank is greatly improved compared with the ordinary oil tank, which ensures the high-efficiency use of the equipment.
3. The S/F double-layer oil tank is highly economical and environmentally friendly, and can effectively protect the energy, avoiding the serious harm and loss caused by energy leakage.
4. Purpose: S/F double-layer oil tank is used in automobile oil station and various fueling systems, aviation fuel storage system, and various management facilities for hazardous chemicals.
