100m3 Double Wall Fuel Oil Storage Tank FRP 50 Cubic Meters
Factory 100m3 Double Layer Frp Underground SF Double Walled Oil Fuel Storage Tank
Description

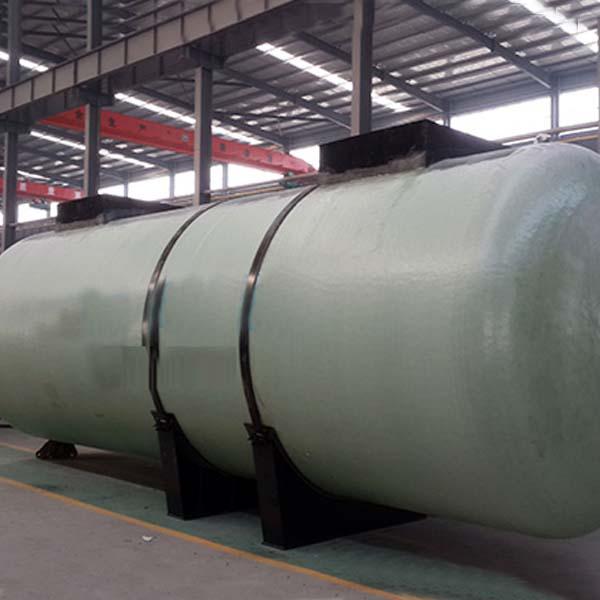

The Factory 100m3 Double Layer Frp Underground SF Double Walled Oil Fuel Storage Tank is composed of a carbon steel inner tank in contact with oil and a glass fiber reinforced plastic outer shell in contact with the soil, which is manufactured by professional equipment. There is a uniform interlayer space between the inner steel tank and the outer glass fiber reinforced plastic shell, and the high-level leak detection device is connected to the interlayer space, which can monitor the leakage of the tank at any time.
Parameter
| Volume(m3) | Nominal parameter(mm) | Cylinder length(mm) | Thickness(mm) | Weight(KG) |
| Head/Cylinder | ||||
| 5 | 1600 | 1870 | 5/6 | 777 |
| 10 | φ1800 | 3280 | 6/6 | 1493 |
| 15 | φ1800 | 5240 | 8/6 | 2500 |
| 25 | φ2200 | 5760 | 8/8 | 2852 |
| 20 | φ2200 | 4500 | 6/6 | 2675 |
| 8/8 | 3280 | |||
| 30 | φ2400 | 5750 | 6/6 | 3321 |
| 8/8 | 4223 | |||
| 40 | φ2600 | 6600 | 8/8 | 5212 |
| 10/8 | 5470 | |||
| 50 | φ2800 | 7100 | 8/8 | 5960 |
| 10/8 | 6255 | |||
| 100 | Φ3000 | 14600 | 12/12 | 11500 |
Advantage
The reason for the rapid promotion and application of Factory 100m3 Double Layer Frp Underground SF Double Walled Oil Fuel Storage Tanks in the market lies in its safety and other advantages. Compared with ordinary oil tanks, it has the characteristics of environmental protection and low cost.
