Q235B Metal Oil Storage Tanks

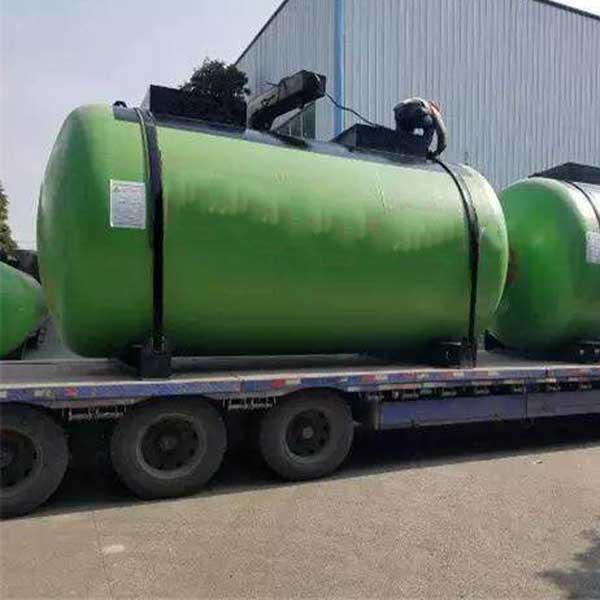

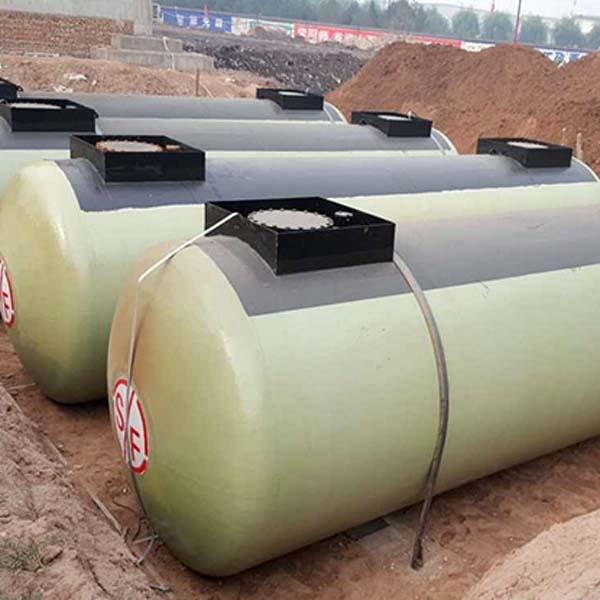

20m3 Underground SF Fiber Glass Petrol Diesel Fuel Oil Storage Tank
Description
20m3 Underground SF Fiber Glass Petrol Diesel Fuel Oil Storage Tank outer layer is made of fiberglass,and the inner layer ismade of Q235b carbon steel,generally used in underground storage and ismanufactured using patent-specific equipment.
Parameter
| Capacity (M3) | 20 | 30 | 40 | 50 | 60 | 70 |
| internal diameter(mm) | 2200 | 2400 | 2600 | 2800 | 2800 | 2800 |
| Tank of the length (mm) | 4500 | 5820 | 6700 | 7200 | 8800 | 10400 |
| Gap between two layer(mm) | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 |
| Inner steel tank thickness(mm) | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
| Head thickness (mm) | ≥8 | ≥8 | ≥8 | ≥8 | ≥8 | ≥8 |
| External tank thickness(mm) | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 | ≥4 |
| Manhole quantity | 2 | 2 | 2 | 2 | 2 | 2 |
| Manhole diameter(mm) | 600 | 600 | 600 | 600 | 600 |
Advantage
Oil storage tanks are generally used in service stations/private gas stations. Storage of flammable liquids for heating systems/feed generators. Storage of aircraft and marine fuel Storage of chemicals and water-contaminating liquids. Collection and storage of waste and wastewater.
Main Features
1) Safety
The tank has a uniform mezzanine space with a leak detector which can monitor whether the tank leaks at any time, to prevent pollution risks, effectively protect the soil of the original ecological environment
2) Economy
The service life is more than 5-10times compares with common single-layer steel oil tank , at least 30 years of safe use, significant savings in maintenance costs.
The leak detector is easy to install that shorten construction time. It protects the ecological environment of soil and water that eliminates the pollution problem. It saves the high cost of environment protection in latter period.
3) Economical and environment protection
FRP guarantees the leaks not let out directly to pollute the soil and water.
Not occur electrolytic corrosion with underwater and saline water.
