0.3-0.5Mpa PSA System Oxygen , Vacuum Swing Adsorption Oxygen Generator
Industrial Pressure Swing Adsorption Oxygen Generator
Description

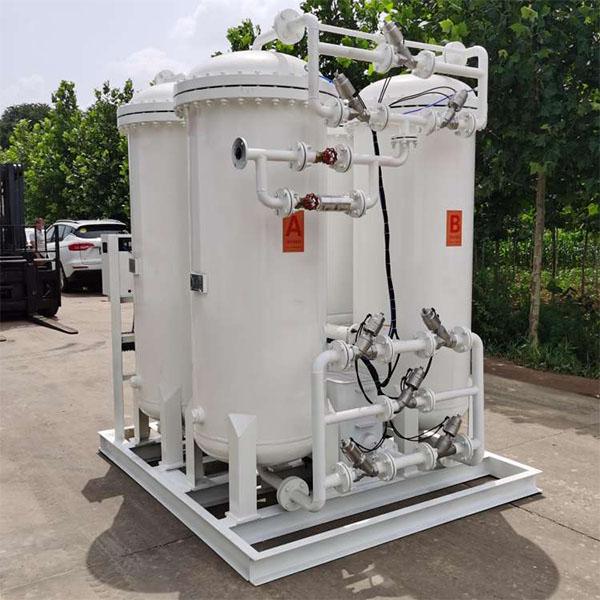

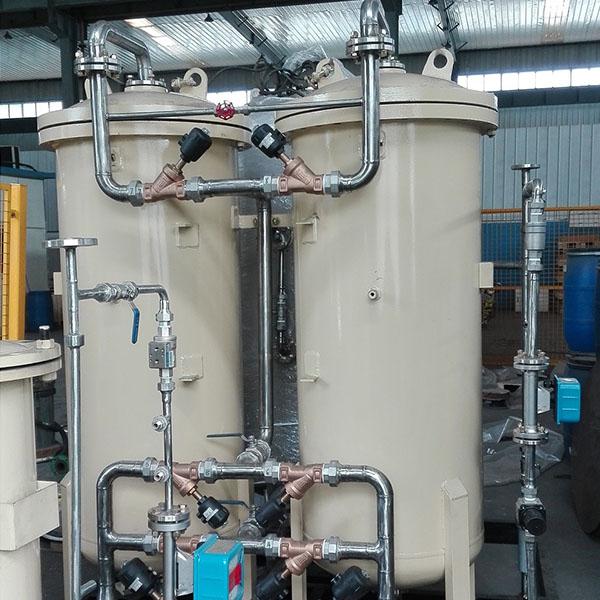

PSA oxygen generator is an oxygen generator carefully developed according to the principle of "PSA" pressure swing adsorption. Using high-quality zeolite as adsorbent, oxygen is directly separated from air at room temperature. After the pressure-holding air is purified and dried, oxygen and nitrogen can be separated under the action of pressure swing adsorption. Due to the selective adsorption characteristics of molecular sieves, nitrogen is adsorbed in molecular sieves, and oxygen is enriched in the oxygen storage gas phase, which is output as a product. The system is equipped with two adsorption towers, one tower absorbs oxygen, the other desorbs and regenerates, and the cycle alternates to continuously produce oxygen.
Parameter
| Model | OGP-05LB | OGP-08LB | OGP-10LB | OGP-15LB | OGP-20LB | OGP-30LB | OGP-40LB | OGP-50LB | OGP-60LB |
| Working voltage | 110V/220V/380V | ||||||||
| Power (KW) | 0.5 | 0.84 | 1 | 1.5 | 1.8 | 2 | 3 | 3.6 | 4 |
| Oxygen output L/min | 5 | 8 | 10 | 15 | 20 | 30 | 40 | 50 | 60 |
| Concentration | ≥93% | ||||||||
| Temperature | 0-35℃ | ||||||||
| Relative humidity | ≤70%±10% | ||||||||
| Noise | ≤ 65Db | ||||||||
| Size cm | 37*60* 96 | 40*80*115 | 40*80*115 | 56*96* 115 | 60*80*125 | 60*100*125 | |||
| Oxygen outlet pressure (Mpa) | 0.3~0.5Mpa | 0.3~0.5Mpa | |||||||
| Net Wight (KG) | 31 | 50 | 55 | 80 | 100 | 145 | 190 | 210 | 230 |
| Housing | Carbon steel sprayed with plastics | ||||||||
| Packing | Wooden case | ||||||||
FAQ
Q1:How many elevator do you produce everymonth?
A: We can produce 35 pcs everymonth.
Q2: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.
Q3: Can you use our brand?
A: Yes, OEM is available.
