High Purity PSA Nitrogen Generator 97% 99.999% N2 Plant
Industrial Nitrogen Generator Machine High Purity 99.999% Psa Nitrogen Generator Price
Description

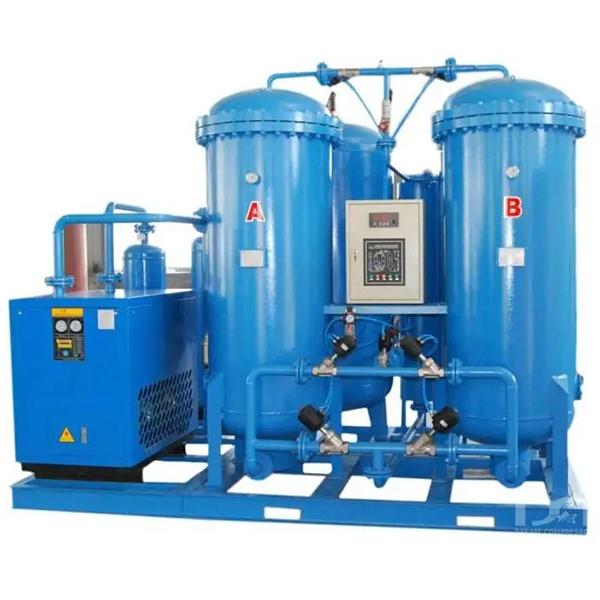

The PSA nitrogen generator compresses and purifies the ambient air, removes oil, water and dust, and then enters a pressure swing adsorption device composed of two adsorption towers filled with carbon molecular sieves. The compressed air flows through the adsorption tower from bottom to top, during which oxygen molecules are adsorbed on the surface of the carbon molecular sieve, and nitrogen flows out from the upper end of the adsorption tower and enters the crude nitrogen buffer tank. After a period of time, the carbon molecular sieve in the adsorption tower is saturated with oxygen adsorbed. regeneration. Regeneration is achieved by stopping the adsorption step and reducing the pressure in the adsorption tower. The two adsorption towers are alternately used for adsorption and regeneration to ensure continuous output of nitrogen.
Parameter
| model | Purity(%) | Production flow(Nm3/h) | Pressuer(Mpa) | Dew point(℃) |
| 97% | 97% | 5~3000 |
0.1-0.8 (adjustable) |
≤-40~-60(under nomal pressure) |
| 98% | 98% | 5~2500 | ||
| 99% | 99% | 5~2000 | ||
| 99.5% | 99.5% | 5~2000 | ||
| 99.9% | 99.9% | 5~1500 | ||
| 99.99% | 99.99% | 5~800 | ||
| 99.995% | 99.995% | 5~800 | ||
| 99.999% | 99.999% | 5~500 | ||
| 99.9995% | 99.9995% | 5~400 |
Technical features:
1. Only need to be equipped with an oil-free or micro-oil air compressor (see the complete set of equipment for the product), and start the power supply of the nitrogen generator to start nitrogen production. The nitrogen purity can be adjusted by adjusting the nitrogen flow, and the adjustment range is 95% to 99.99%.
2. The complete set of equipment is automatically operated, and is equipped with frequency converter circuit energy-saving control to ensure that the entire set of nitrogen generators operates in an economical and energy-saving state.
3. The nitrogen measuring instrument is continuously tested online, and the nitrogen purity is monitored in real time. The whole machine is compact in structure, small in size and easy to clean.
4. The unit adopts the optimized design, which is durable and quick to pay back the investment.
