380 Volt PSA Type Nitrogen Generator 90%-99.9999%
Factory Supply Whole Sell Price PSA Nitrogen Generator N2 Gas Plant For Laser Cutting
Description

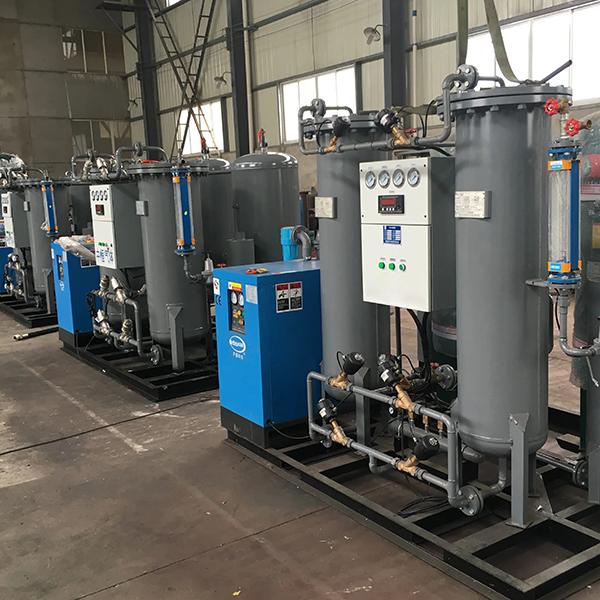

PSA nitrogen generator is a nitrogen generator designed and manufactured according to pressure swing adsorption technology. Using air as raw material, high-quality carbon molecular sieve as adsorbent, using the principle of pressure swing adsorption, and using molecular sieve full of micropores, the air is selectively adsorbed to achieve the purpose of oxygen and nitrogen separation.
Parameter
| Model Specifications | 5 | 10 | 30 | 50 | 100 | 200 | 300 | 400 | MS -QC500 |
| Gas processing (Nm3/h) |
5 | 10 | 30 | 50 | 1 00 | 200 | 300 | 400 | 500 |
| Oxygen (%) | =0.5 | =0.5 | =0.5 | =0.5 | =0.5 | =0.5 | =0.5 | =0.5 | =0.5 |
| Poor nitrogen feed gas Dew point(°C) |
=-30 | =-30 | -30 | =-30 | =-30 | =-30 | =-30 | =-30 | =-30 |
| Oxygen(ppm) | =5 | =5 | =5 | =5 | =5 | =5 | =5 | =5 | =5 |
| Afer purication of high purity Dew point(°C) |
-60 | -60 | -60 | -60 | -60 | -60 | -60 | -60 | -60 |
| Operating pressure (Mpa) |
=0.6 | =0.6 | =0.6 | =0.6 | =0.6 | =0.6 | =0.6 | =0.6 | =0.6 |
| The reactor temperature degree(°C) |
300~350 | 300- 350 |
300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 | 300-350 |
| temperature adsorption tower(°C) |
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Power consumption(kw) | 4.8 | 6.8 | 10.5 | 15 | 30 | 50 | 60 | 80 | 1 00 |
| Deoxidizer capacity(kg) | 10 | 30 | 80 | 100 | 200 | 260 | 380 | 480 | 520 |
| Dimensions(m) (L xWxH) |
0.8x 0.5xl.5 | 1.2x 0.8x2.4 | 1.5x 0.8x3.0 | 2.5x 1.5x3.0 | 3.0x 2.0x4.0 | 3.0x 2. 5x4.0 | 3.2x 2.5x4.5 | 3.4x 2. 5x4.6 | 3.6x 2. 5x4.6 |
Feature
1. The PSA nitrogen generator has low operating cost, stable and reliable nitrogen purity and flow.
2. Part of the air pretreatment equipment, each filter has a pressure differential indicator, and an automatic sewage system.
3. The PSA nitrogen generator adopts standard parts to connect and disassemble, which is more convenient for installation and maintenance.
4. The imported programmable valve with high reliability has a long service life and can meet the needs of long-term stable operation of the equipment.
5. High degree of automation, using microcomputer automatic program control system, the equipment can run automatically, and the nitrogen purity, pressure and flow can be adjusted according to needs.
6. The equipment adopts aviation aluminum profiles for better use in the food and pharmaceutical industries or requires higher precision of the gas source.
