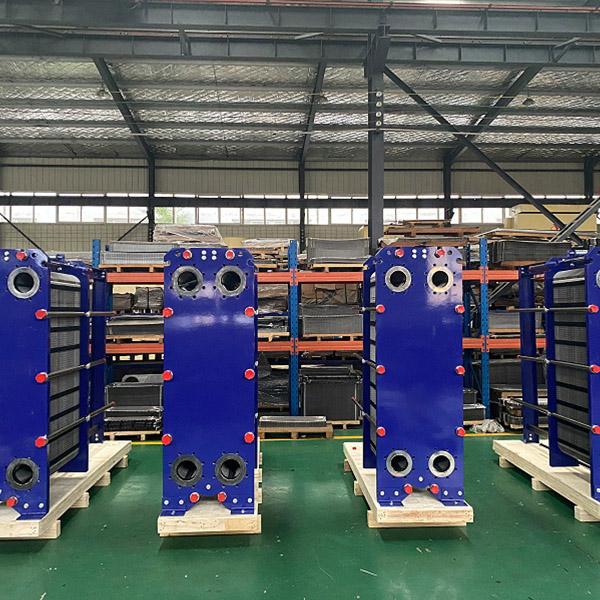

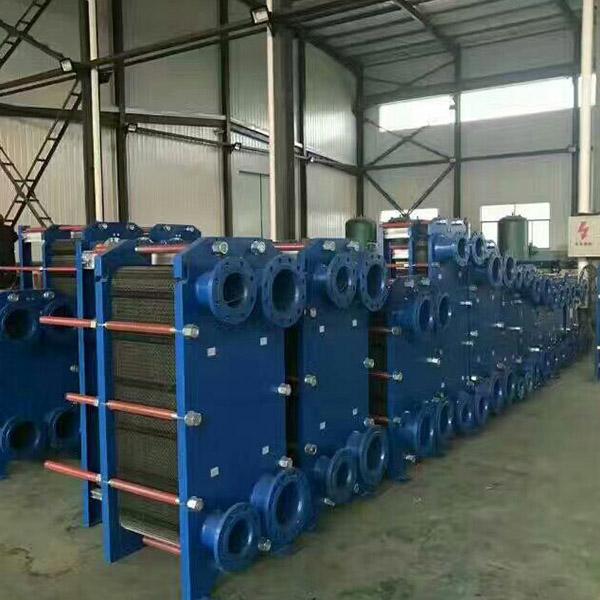

200 Degree Gasketed Plate Exchanger Boiler 3.0mpa

Industrial Stainless Steel Gasket Plate Heat Exchanger Price

Description

The deviation of the plate corrugation depth and bottom of the plate heat exchanger is less than or equal to ±0.2mm; the maximum deviation of the distance between the centerline of the plate suspension positioning and the centerline of the corner hole is not more than ±0.3mm; the flatness of the plate base surface in any direction is less than or equal to 3/1000mm; The life of the gasket is not less than 15 years, the pressure resistance meets the design requirements, and the leakage rate is zero when the medium is hot water at 200 °C; 20℃, the pressure is 1.25 times the working pressure.

Parameter

principle

The plate heat exchanger is made of many stamped corrugated sheets at certain intervals, sealed around by gaskets, and overlapped with a frame and a compression screw. The four corner holes of the plates and gaskets form the fluid distribution pipe and At the same time, the cold and hot fluids are reasonably separated, so that they flow in the flow channels on both sides of each plate, and heat exchange is carried out through the plates.
