2.0mpa 1.6mpa Stainless Steel Plate Heat Exchanger Frame 200mm Food Grade

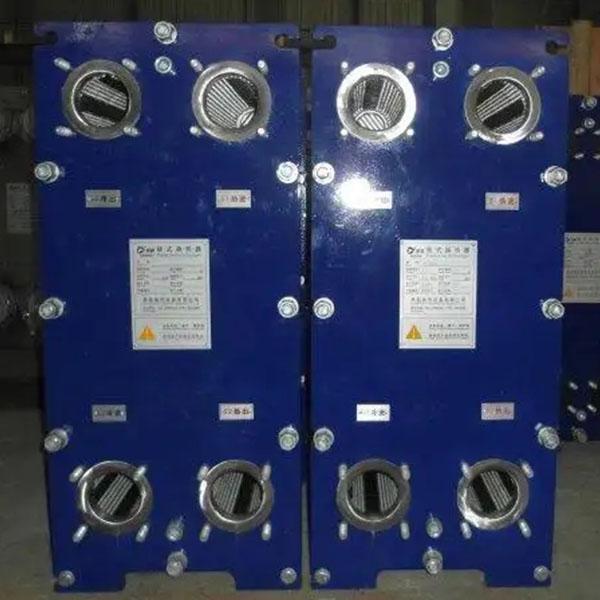

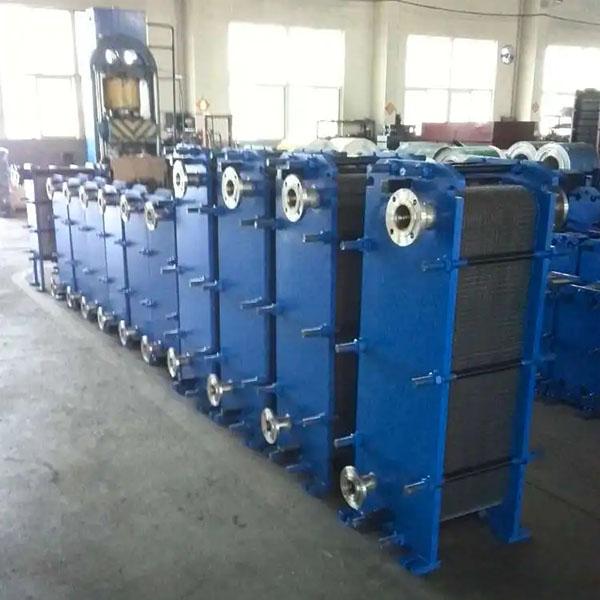

Food Grade Stainless Steel Sanitary Plate Heat Exchanger
Description
The plate and compression plate of the plate heat exchanger are suspended from the upper load rod and positioned by the lower guide rod, which is secured by the strut and fitted with washers on the tensioning bolts for the removal of equipment, frames and columns with adjustable supports.
Parameter
| type | BR0.05 | BR0.1A | BR0.1B | BR0.2 | BR0.23 | BR0.3 | BR0.55 | BR0.85 | BR1.0 |
| heat exchange area(m²) | 0.0618 | 0.0966 | 0.101 | 0.204 | 0.222 | 0.318 | 0.547 | 0.86 | 1.055 |
| tray spacing (mm) | 3.8 | 3.8 | 4 | 4 | 3.8 | 3.8 | 0.547 | 3.8 | 3.8 |
| diameter( m) | 0.0076 | 0.0076 | 0.008 | 0.008 | 0.0076 | 0.0076 | 0.0076 | 0.0076 | 0.0076 |
| sectional area(m²) | 0.000494 | 0.000787 | 0.00072 | 0.00072 | 0.00106 | 0.00106 | 0.00166 | 0.00225 | 0.00225 |
| angle diameter (mm) | 38 | 60 | 45 | 70 | 75 | 80 | 135 | 200 | 200 |
| capacity (m3/h) | 25 | 60 | 35 | 85 | 90 | 110 | 310 | 680 | 680 |
| heat exchange area( m²) | 1-5 | 3-10 | 3-10 | 4-25 | 5-30 | 8-40 | 25-120 | 50-180 | 80-250 |
| pressure (mpa) | 2.0 | 2.0 | 2.0 | 1.6 | 1.6 | 1.6 | 1.0 | 1.0 | 1.0 |
| working temperature | Depending on the gasket material | ||||||||
Features:
Professional system design.
The compact structure design saves floor space and infrastructure costs.
Intelligent design man-machine interface unattended, remote monitoring.
Rich operating experience.
The selection of reliable components.
Professional and reliable service team, quick response and lifetime warranty.
Professional training allows operators to be proficient in control.
FAQ
Q: What about the delivery time?
A: 5-10 working days for a single machine, 30-40 working days for bulk orders, and door-to-door service is also available.
Q: What about the warranty?
A: We provide 1 year free warranty and lifetime maintenance
Q: How is the installation?
A: We provide relevant materials for installation, commissioning and training.
