3.5kw 7kw Tubular Heat Exchanger System , High Pressure Shell And Tube Surface Condenser
Industrial Shell Tube Heat Exchanger Price
Description

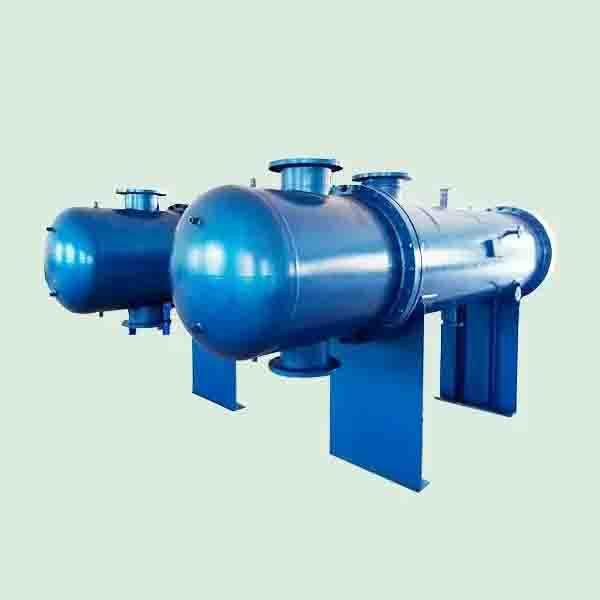

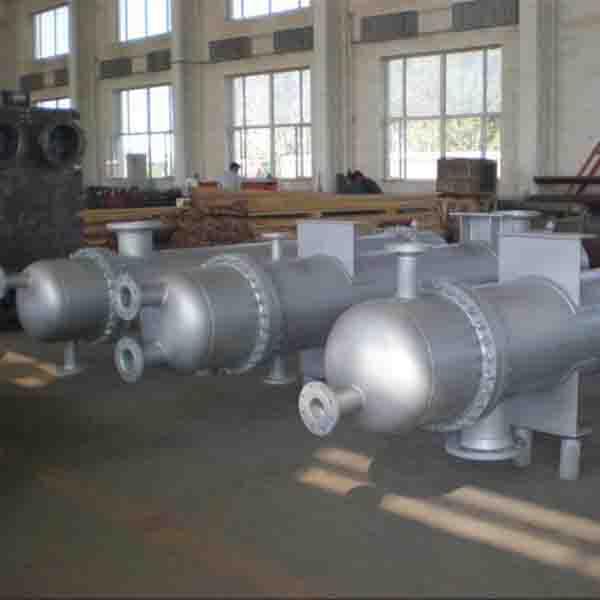

Shell-and-tube heat exchangers are also called shell-and-tube heat exchangers. It is a partition heat exchanger with the wall surface of the tube bundle enclosed in the shell as the heat transfer surface. The heat exchanger has the advantages of simple structure, low cost, wide flow cross-section, and easy cleaning of scale; however, the heat transfer coefficient is low and the floor area is large. It can be made of various structural materials (mainly metal materials), can be used under high temperature and high pressure, and is the most widely used type.
Parameter
| Model | Heating Capacity | Titanium Tube Size | Water Flow |
Water Inlet &Outlet |
Refrigerant Inlet &Outlet |
Others |
| Btu/h (kw) | (Dia.*Length) mm | M3/h | Inch | mm | ||
| MHTA-0.75 | 8800 (2.6kw) | Φ9.52*2500 | 1.0 | 1 | 9.52,9.52 | |
| MHTA-1 | 12000 (3.5kw) | Φ9.52*3500 | 1.5 | 1.5 | 12.7,9.52 | |
| MHTA-1.5 | 17000 (5kw) | Φ9.52*4500 | 2.2 | 1.5 | 12.7,9.52 | |
| MHTA-2 | 24000 (7kw) | Φ12.7*5500 | 3.0 | 1.5 | 12.7,9.52 | |
| MHTA-3 | 36000 (10.5kw) | Φ12.7*8500 | 4.5 | 1.5 | 12.7,9.52 | |
| MHTA-5 | 58000 (17kw) | Φ12.7*13500 | 7.5 | 1.5 | 15.88,12.7 | |
| MHTA-7 | 78000 (23kw) | Φ16*10500 | 10.5 | 1.5 | 15.88,12.7 | |
| MHTA-10 | 110000 (33kw) | 2-Φ12.7*15000 | 15 | 2 | 19.05,12.7 | |
| MHTA-12 | 135000 (39kw) | 2-Φ12.7*16500 | 18 | 2 | 19.05,12.7 | |
| MHTA-15 | 160000 (47kw) | 2-Φ16*20000 | 22.5 | 2 | 19.05,12.7 |
Classification
Shell and tube heat exchangers include fixed tube sheet steam-water heat exchangers, shell-and-tube steam-water heat exchangers with expansion joints, floating head steam-water heat exchangers, U-shaped shell-and-tube steam-water heat exchangers , corrugated shell-and-tube steam-water heat exchanger, segmented water-water heat exchanger, etc. The main control parameters of the shell and tube heat exchanger are heating area, hot water flow, heat exchange, heat medium parameters, etc.
FAQ
Q1. How to choose suitable oil cooler for the system?
Answer: Customer provides us with system’s main technical data, such as oil flow, gas flow, system power, working pressure, oil temperature and air temperature, etc. We will calculate and choose suitable product for you.
Q2. How to place a customized order?
Answer: As a professional and experienced oil cooler manufacturer, we welcome all kinds of customized orders. We are pleasure to be helpful to solve customer’s problems. More details, welcome to contact our people.
