400mm 316 Shell Tube Heat Exchanger Sus304 Refrigerant Condenser
High Pressure Sus304 Stainless Steel Shell And Tube Heat Exchanger
Description

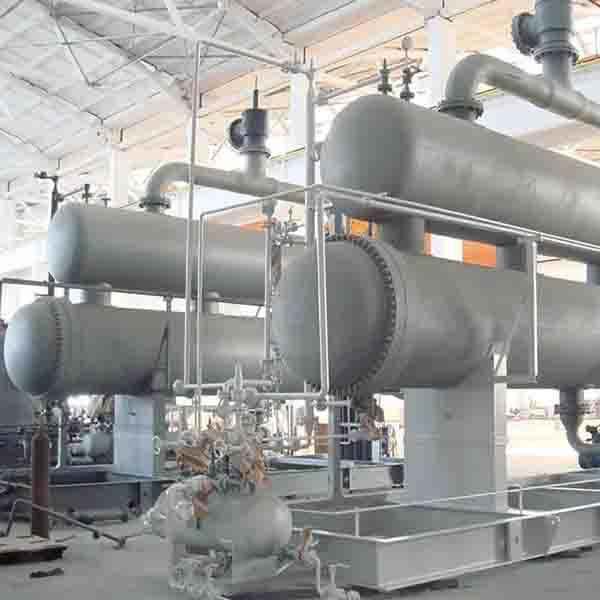

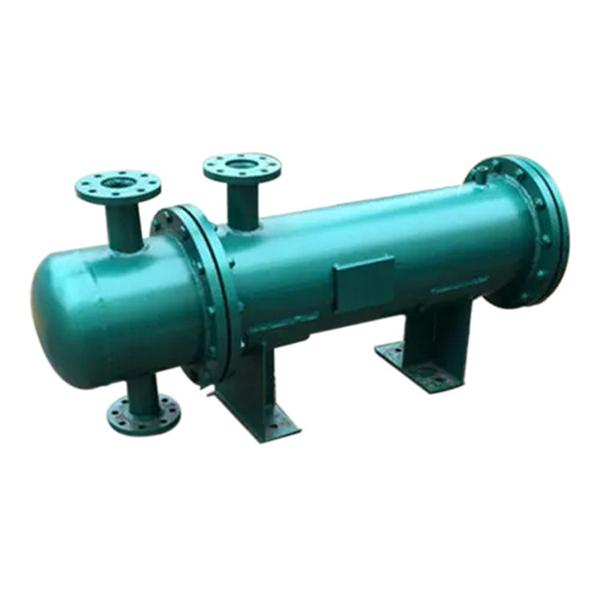

Shell and tube heat exchanger (shell and tube heat exchanger) is also called tube heat exchanger. It is a partition heat exchanger with the wall surface of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger is relatively simple in structure and reliable in operation. It can be made of various structural materials (mainly metal materials), and can be used under high temperature and high pressure. It is the most widely used type at present.
Parameter
| Diameter (mm) | Effective Length(m) | Heart Transfer Area(m2) | Operating Temperature(C) | Working Pressure(Mpa) |
| 400 | 1.2-2.6 | 3.37-8.07 | 200 | 0.6 |
| 500 | 1.6-3.0 | 7.9-14.9 | 200 | 0.6 |
| 600 | 1.8-3.2 | 14.2-25.3 | 200 | 0.6 |
| 800 | 1.8-3.2 | 3.0-40.8 | 200 | 0.6 |
Advantage
1, high quality material: high temperature resistance, corrosion resistance, good heat exchange effect
2. Large heat transfer area: the condenser heat transfer tube is designed with threaded tube, which increases the contact area and has good cooling effect.
3, wide range of application: refrigeration industry, HVAC, chemical industry, metallurgy industry, machinery industry, power industry, paper industry, central heating and other industries.
Feature
The structure of shell and tube heat exchanger includes condensing unit, main control board, cold room temperature control board, operation board, etc. Optional cold room temperature control panel and operation panel. The main control board can start/stop the compressor in the following ways. Suitable for supermarkets, milk containers, chillers, etc. Optional, the system can be controlled
Compressor by adjusting the temperature.
