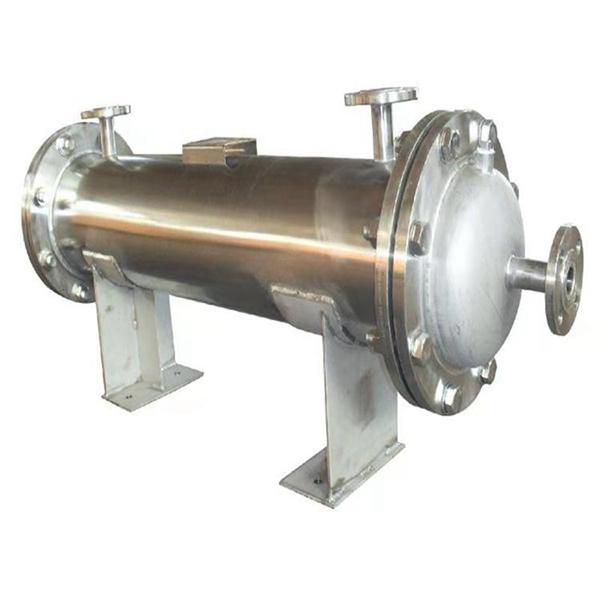

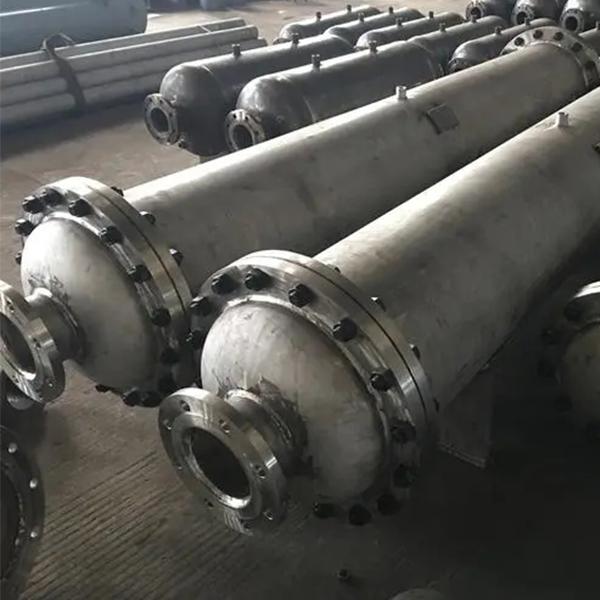

Super Quality Wholesale Shell And Tube Heat Exchanger
Description
Shell and tube heat exchangers are designed to remove thermal energy from the exhaust gas of natural gas, compressed air, hydraulic oil and transfer it to the heat exchange equipment of the water circuit. With advanced production equipment and information management, the company produces equipment in strict accordance with industry standards and technologies, and the extracted heat can be used for space heating, domestic hot water and any industrial process that requires hot water.
Specification
| 1 | Vessel category | II | |
| 2 | Description | Shell | Tube |
| 3 | Operation pressure, MPa.G | 2.5 | 0.4 |
| 4 | Design pressure, MPa.G | 2.75 | 0.8 |
| 5 | IN/OUT operation temperature, °C | 2.66/15.32 | 120/100 |
| 6 | Design temperature, °C | 50 | 200 |
| 7 | Mean metal temperature, °C | 13.39 | 48.11 |
| 8 | Medium | Mixed hydrocarbon | Heat transfer oil |
| 9 | Material of main pressure parts | SS30408 | SS30408 |
| 10 | Corrosion allowance, mm | 0 | 0 |
| 11 | Shell/head oint coefficient | 1 | 0.85 |
| 12 | Insulation thickness, mm | 80 | |
| 13 | Heat transfer area, m2 | 18.5 | |
| 14 | Service life, years | 20 | |
| 15 | Test | Hydraulic test, air leakage test, pressure test | |
Cooling characteristics of shell and tube heat exchangers:
1. The heat transfer tube adopts the copper tube with rolled fins on the outer surface, which has high thermal conductivity and large heat exchange area.
2. The deflector guides the shell-side fluid to flow continuously in a broken line in the heat exchanger. The distance between the deflectors can be adjusted according to the optimal flow rate. heat exchange.
3. When the shell-side fluid is oil, it is suitable for heat exchange with low viscosity and relatively clean oil.
FAQ
Q: What price terms you offer?
A: We can offer FOB, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need.
Q: How can I visit your factory?
A: Just let us know your scheduel in advance and we will arrange everything for you.
