Copper Steel Finned Coil Heat Exchanger 200v 1.6MPa
Copper Finned Coil Tube Heat Exchanger Reasonable Price
Description

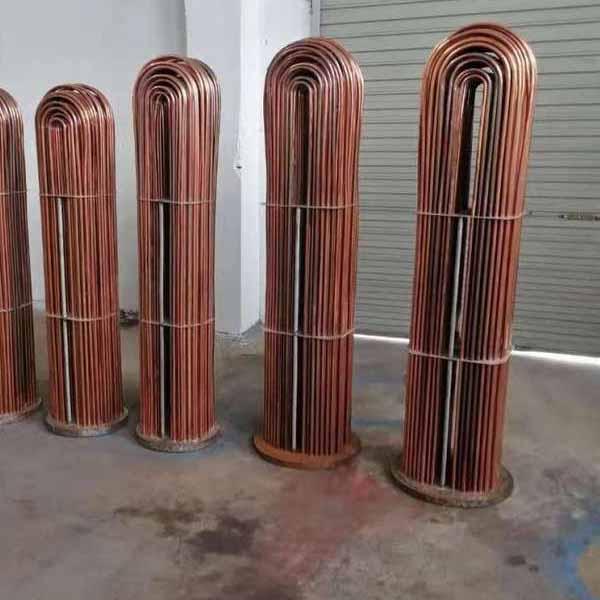

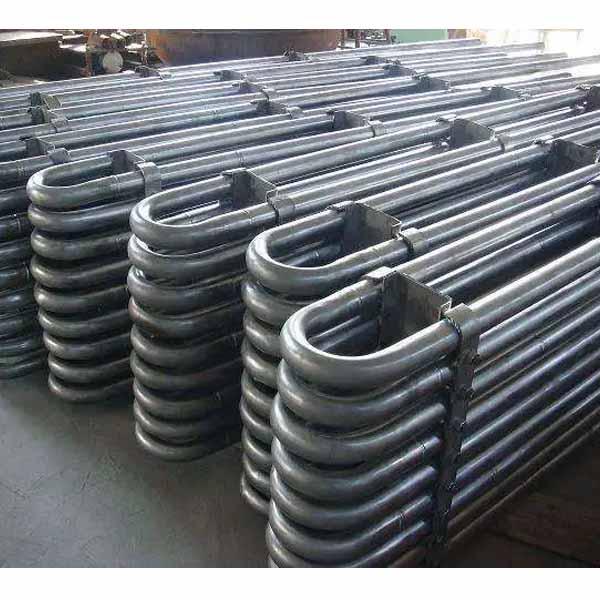

Coil-type heat exchanger is a kind of tube-type heat exchanger, also known as coil-type heat exchanger and multi-circle tube-type heat exchanger. The one is called the shell process, and the internal one is called the tube process. Two different media can flow in the opposite direction (or in the same direction) in the shell side and the tube side to achieve the effect of heat exchange
Specifications
| Tube Geometry(mm) | Fin pattern | FPI(mm) |
| Φ7 -- 21 / 12.7 / 10.5 | Plain, Bridge | 12-23 |
| Φ7 -- 21 / 18.19 / 10.2 | Sine wave, Lance | 13.5-21 |
| Φ7.94 --25.4 / 19.5 / 12.7 | Plain, Lance, Sine wave | 8-21 |
| Φ9.525 -- 25 / 21.65 / 12.5 | Louver, Triangle wave | 13-21 |
| 9.525 / 25.4 / 19.05 / 12.7 | Plain, Louver, Sine wave | 10-21 |
|
Φ9.525 -- 25.4 / 22 / 12.7 |
Louver, Sine wave (18R) Plain, Lence, Sine wave (36 R) Triangle wave (24 R) |
9-21 9-21 2.5-6 |
| Φ12.7 -- 35 / 30.31 / 17.5 | Louver, Sine wave | 8.5-14 |
| Φ12.7 -- 40.48 / 35.06 / 20.24 | Triangle wave | 2.5-6 |
| Φ15.88 --38 / 32.91 / 19 | Plain, Bridge | 6.5-13 |
advantage:
The coil type heat exchanger has a simple structure, the heat transfer area can be increased or decreased freely, and the heat transfer efficiency is high. The shape can be changed arbitrarily according to the installation position, which is convenient for installation, withstands pressure and shock, is not easy to deform, resists dirt and scale, is not easy to block, returns oil smoothly, has high safety, good workmanship, is not easy to leak, and has flexible structure, convenient layout, low price and cost saving.
