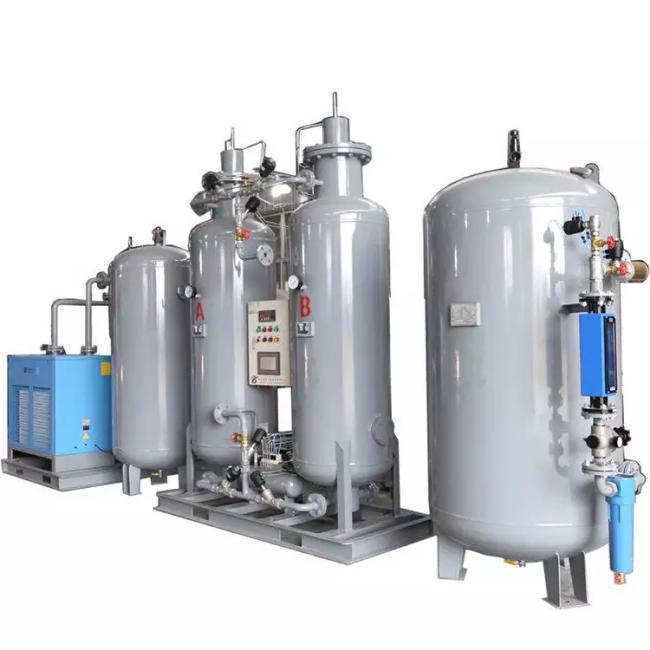

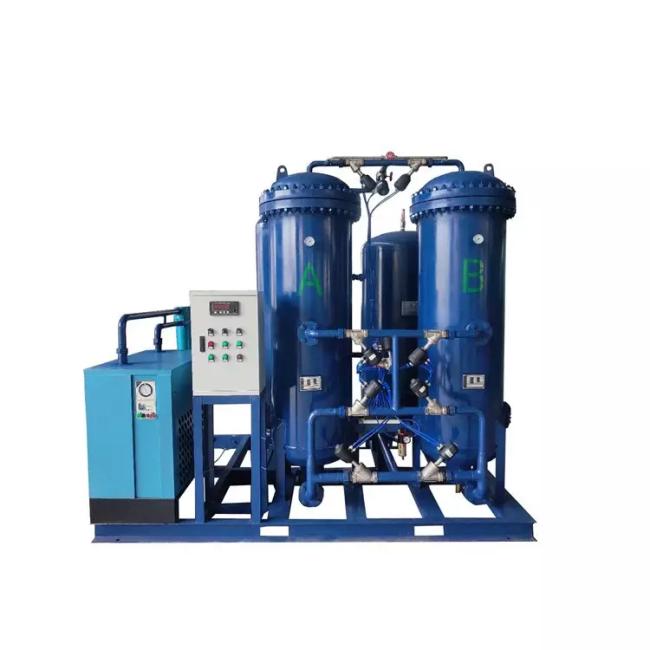

High Purity Long Life Modular Psa Nitrogen Generator 0.1~0.8Mpa
High Purity Long Life Modular Psa Nitrogen Generator Efficient Psa N2 Generator
Description
PSA Nitrogen Generator is a nitrogen generation equipment adopting carbon molecular sieve as adsorbent - pressurized adsorption and desorption of oxygen from the air resulting in the separation of nitrogen.PSA oxygen generator plant is fabricated using advanced Pressure Swing Adsorption technology. As is well-known, oxygen constitutes around 20-21% of atmospheric air. PSA oxygen generator used Zeolite molecular sieves to separate the oxygen from the air. Oxygen with high purity is delivered whereas the nitrogen absorbed by the molecular sieves is directed back into the air through the exhaust pipe.
Parameter
|
Specification
|
Output (Nm3/h)
|
Effective gas consumption ( Nm3/min )
|
Air cleaning system
|
Inlet/outlet caliber(mm)
|
|
FKN59-5
|
5
|
0.78
|
KJ-1
|
DN25/DN15
|
|
FKN59-10
|
10
|
1.75
|
KJ-2
|
DN25/DN15
|
|
FKN59-20
|
20
|
3.55
|
KJ-6
|
DN40/DN15
|
|
FKN59-30
|
30
|
5.25
|
KJ-6
|
DN40/DN25
|
|
FKN59-40
|
40
|
7.0
|
KJ-10
|
DN50/DN25
|
|
FKN59-50
|
50
|
8.7
|
KJ-10
|
DN50/DN25
|
|
FKN59-60
|
60
|
10.5
|
KJ-12
|
DN50/DN32
|
|
FKN59-80
|
80
|
13.75
|
KJ-20
|
DN65/DN40
|
|
FKN59-100
|
100
|
16.64
|
KJ-20
|
DN65/DN40
|
|
FKN59-150
|
150
|
24.91
|
KJ-30
|
DN80/DN40
|
|
FKN59-200
|
200
|
33.37
|
KJ-40
|
DN100/DN50
|
|
FKN59-300
|
300
|
49.82
|
KJ-60
|
DN125/DN50
|
FAQ
1.Factory Or Trade Company?
--We Are Professional Nitrogen Generator Factory!
2.How Can i Get Your Price List?
--Send An Enquiry To Us And Tell Us u Need Our Pricelist,Our Sales Will Reply u With in 12 hours With Pricelist.
3.Can i Get An Sample To Check Quality Before Mass Order?
--You Can Visit Our Factory Before You Order Our Products.
4.Any Guarantee For Your Products?
--Professional Engineering Team And Strict Quality Management System. All Of Our Products With 12months Free Guarantee,Never Need To Worry About The After-Sale Service,We Will Always Be Here To Support Your Business!
5.Any Certifications For Your Products?
--Our Products Can Pass ISO 9001 Etc Certifications,So They Can Be Sold To Worldwide Safely!
6.How About The Delivery Time?
--Usually For 15~30days.
7.Do u Support Oem/Odm Service?
--Yes,We Do Support,We Have Experienced R&D Team,So Welcome To Place Oem/Odm Orders To Us.
8.At Last,About The Payment Terms,Any Convenient And Safe Way For Our Buyers?
--We Have Paypal,T/T, Pay
