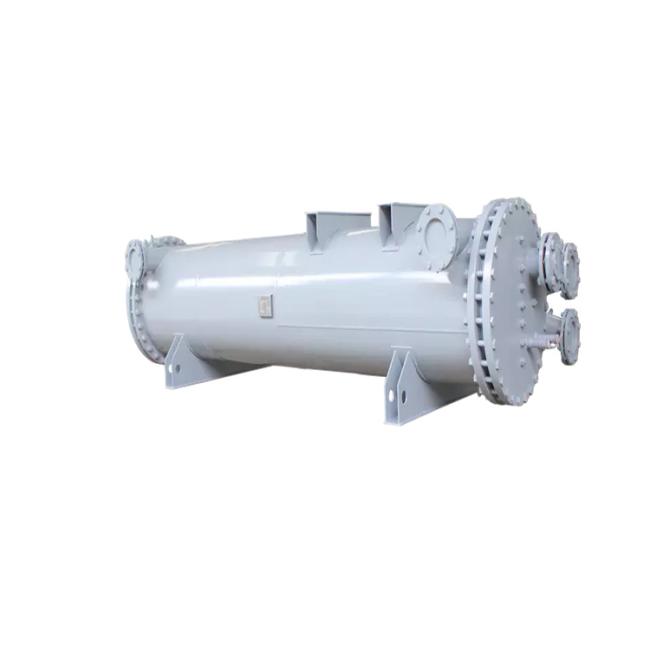

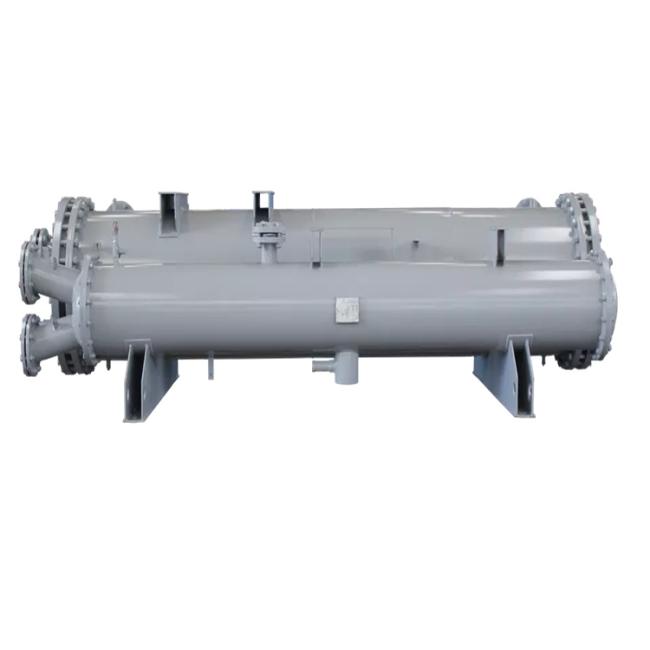

Anti Corrosion Titanium Coaxial Coil Tube Heat Exchanger Titanium Coil For Condenser
Anti-Corrosion Titanium Coaxial Coil Tube Heat Exchanger Titanium Coil For Condenser
Description
This product is a recuperative heat exchanger. The inner tube (titanium twisted tube) is tube pass, and the gap between inner pipe and outer pipe is shell pass. Which is separated the two media by inner tube (the surface of titanium tubes). Enable to heat exchange by using the common wall surface. Generally, the shell pass is for water, and the tube pass is for the air. It used a manner of countercurrent, which can be improved the effect of the heat transfer.
Parameter
|
Heat Exchanger Vertical Type For Cultivation
|
||||||
|
Model
|
Specifications
|
Type
|
Water Out size
(inch)
|
Water In size
(inch)
|
External Dimensions
A B C D E
|
|
|
WHC-1.0DYL
|
1.0HP
|
single circuit
|
1.0
|
1.0
|
380 160 280 55 230
|
|
|
WHC-1.5DYL
|
1.5HP
|
single circuit
|
1.0
|
1.0
|
400 200 300 55 250
|
|
|
WHC-2.0DYL
|
2.0HP
|
single circuit
|
1.0
|
1.0
|
450 200 350 55 300
|
|
|
WHC-3.0DYL
|
3.0HP
|
single circuit
|
1.5
|
1.5
|
500 200 400 55 400
|
|
|
WHC-4.0DYL
|
4.0HP
|
single circuit
|
1.5
|
1.5
|
550 200 450 55 400
|
|
|
WHC-5.0DYL
|
5.0HP
|
single circuit
|
1.5
|
1.5
|
650 200 550 55 500
|
|
Product features:
- Patented, Revolutionary Technology.
- Innovative Design.
- It is widely applied to air / water source heat pump,water cooler compressor unit etc.
- Structural optimization technology makes fluid flow more efficient and higher heat exchanging performance.
